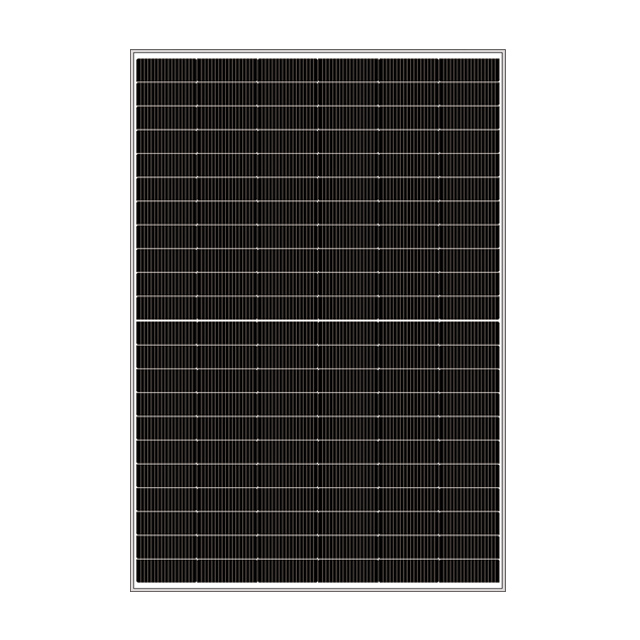

N-TopCon Solar Panel Mono 395W-420W Monofacial
Type of panels: N-type TOPCon Technology
Power range: 395W-420W
Efficiency range: 21.20%-22.60%

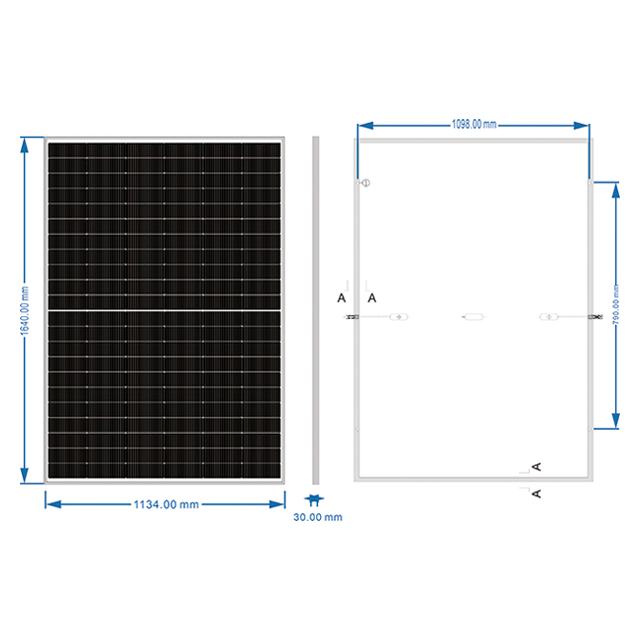

Dimensions: 1640 mm x 1134mm x 30 mm
Weight: 19Kg
Performance Guarantee: 30 years
Product Warranty: 12 years
Packaging：1036pcs/40HQ Container
|
Cell Type |
N-Type TopCon Half-cut Cell |
|
No. of cells |
132 |
|
Front Cover |
3.2 mm glass, high transmission, |
|
Encapsulation |
EVA |
|
Back Cover |
White backsheet |
|
Junction Box |
IP68 rated, 3 bypass diodes |
|
Frame |
30 mm anodized aluminium alloy |
|
Cable |
1 x 4 mm², 350 mm length or customized |
|
Connectors |
MC 4/ MC 4 compatible |
|
Weight |
19kg |
|
Dimension |
1640*1134*30mm |
|
Packaging |
1036pcs/40HQ Container |
