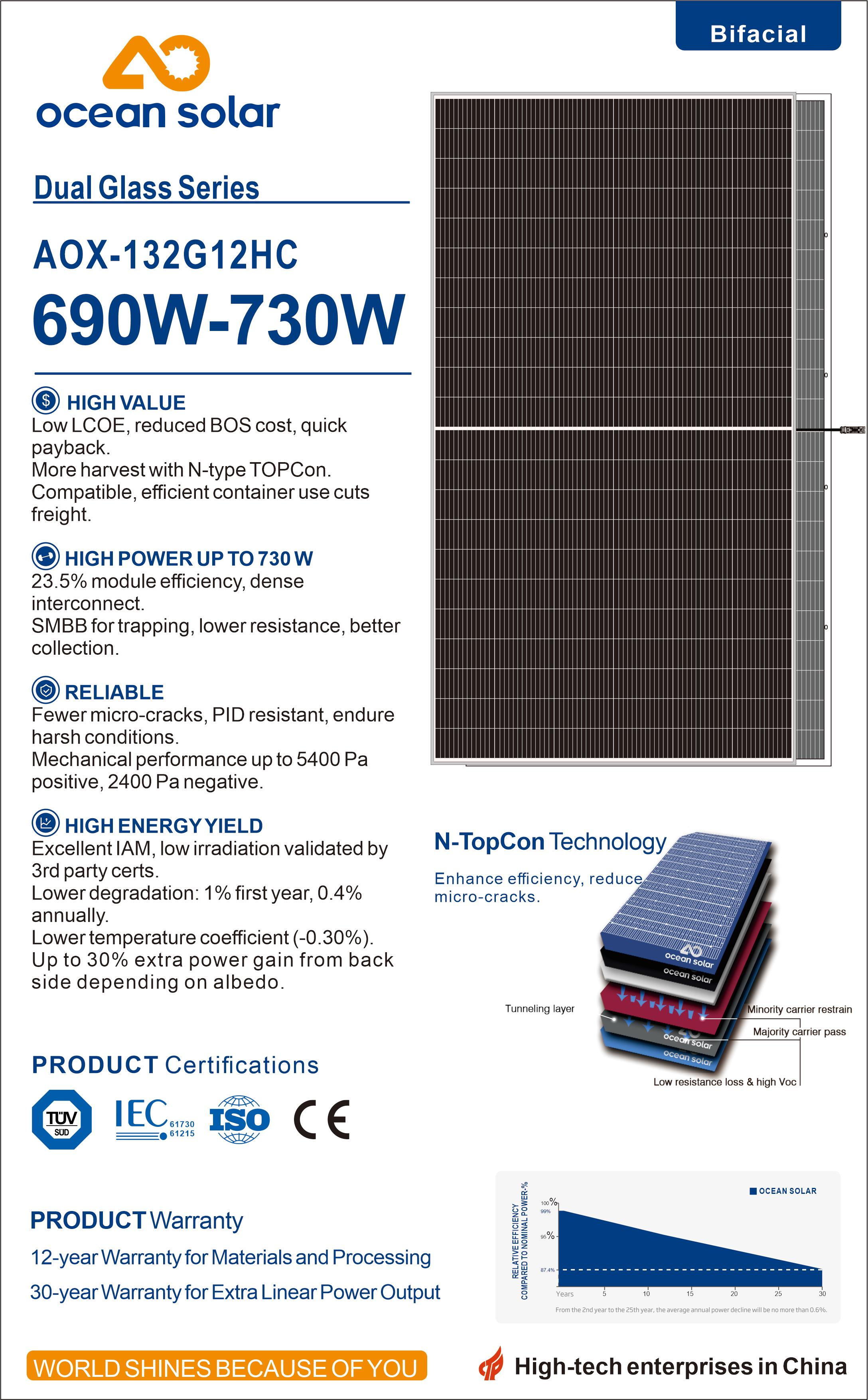

Mono 700W-730W Bifacial-DualGlass
Type of panels: N-type TOPCon Technology, Half-cells, 182 mm * Monofacial
Efficiency range: 22.20%-23.50%
Dimensions: 2384 mm x 1304mm x 35 mm
Weight: 35.5Kg(+/-0.5kg)
Performance Guarantee: 30 years
Product Warranty: 12 years
Packaging：31pcs/pallet,558pcs/40HQ Container

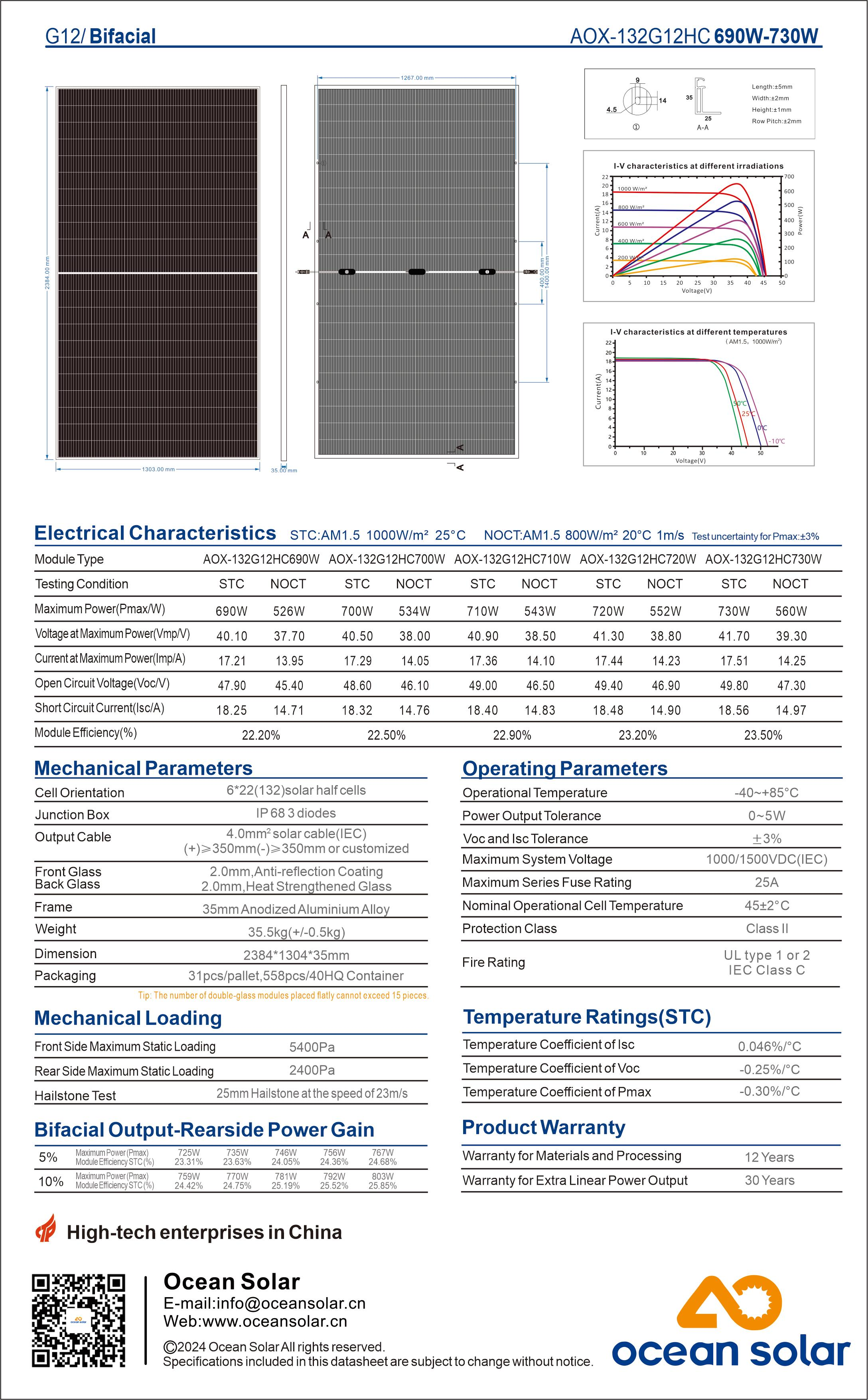

| Cell | Mono 182*105 |
| No. of cells | 132(6×22) |
| Rated Maximum Power(Pmax) | 730W |
| Maximum Efficiency | 23.5% |
| Junction Box | IP68,3 diodes |
| Maximum System Voltage | 1000V/1500V DC |
| Operating Temperature | -40℃～+85℃ |
| Connectors | MC4 |
| Dimension | 2384*1304*35mm |
| No.of one 40HQ container | 558pcs |
12-year warranty for materials and processing;
30-year warranty for extra linear power output.
* Advanced automated production lines and first-class brand raw material suppliers ensure that solar panels are more reliable.
* All series of solar panels have passed TUV, CE, CQC, ISO,UNI9177- Fire Class 1 quality certification.
* Advanced Half-cells, MBB and PERC solar cell technology, higher solar panel efficiency and economic benefits.
* Grade A quality, more favorable price, 30 years longer service life.
High-end three-dimensional flexible robotic cutting applications, to achieve bevel cutting function, the pipe and the torch using the servo positioning function .
Can cut carbon steel, stainless steel, copper, aluminum and other pipes and profiles, such as: the tube, pipe, oval pipe, rectangular pipe, H-beam, I-beam, angle, channel, etc. The device is widely used in various kind of pipes profile processing field, shipbuilding industry, network structure, steel, marine engineering, oil pipelines and other industries.
Widely used in residential PV system，commercial & industrial PV system，utility-scale PV system，solar energy storage system, solar water pump, home solar system, solar monitoring, solar street lights,etc.
