Wholesale M6 MBB PERC 120 half cells 360W-380W black frame solar module factory and suppliers | Ocean Solar

M6 MBB PERC 120 half cells 360W-380W black frame solar module

Short Description:

Assembled with MBB PERC cells, the half-cell configuration of the solar modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.


Product Detail

Product Tags

Product Features

Ultra-high Power Generation/Ultra-high Efficiency
Enhanced Reliability
Lower LID / LETID
High Compatibility
Optimized Temperature Coefficient
Lower Operating Temperature
Optimized Degradation
Outstanding Low Light Performance
Exceptional PID Resistance

Data Sheet

Cell Mono 166*83mm
No. of cells 120(6×20)
Rated Maximum Power(Pmax) 360W-380W
Maximum Efficiency 19.8-20.9%
Junction Box IP68,3 diodes
Maximum System Voltage 1000V/1500V DC
Operating Temperature -40℃~+85℃
Connectors MC4
Dimension 1755*1038*35mm
No.of one 20GP container 336PCS
No.of one 40HQ container 884PCS

Product Warranty

12-year warranty for materials and processing;
30-year warranty for extra linear power output.

Product Certificate

certificate

Product advantage

* Advanced automated production lines and first-class brand raw material suppliers ensure that solar panels are more reliable.

* All series of solar panels have passed TUV, CE, CQC, ISO,UNI9177- Fire Class 1 quality certification.

* Advanced Half-cells, MBB and PERC solar cell technology, higher solar panel efficiency and economic benefits.

* Grade A quality, more favorable price, 30 years longer service life.

Product Application

Widely used in residential PV system, commercial & industrial PV system, utility-scale PV system, solar energy storage system, solar water pump, home solar system, solar monitoring, solar street lights, etc.

details show

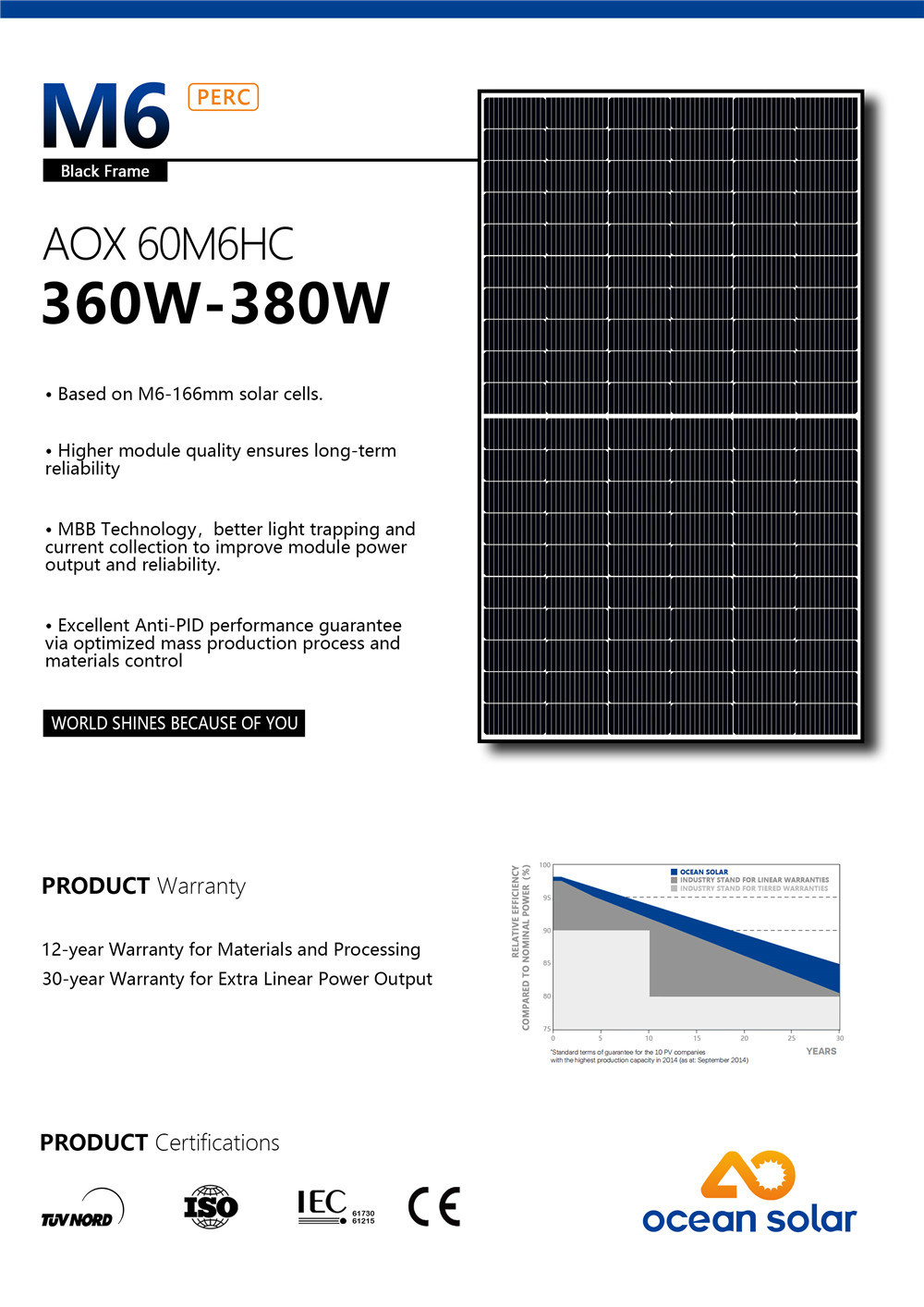

60M6-380W (1)

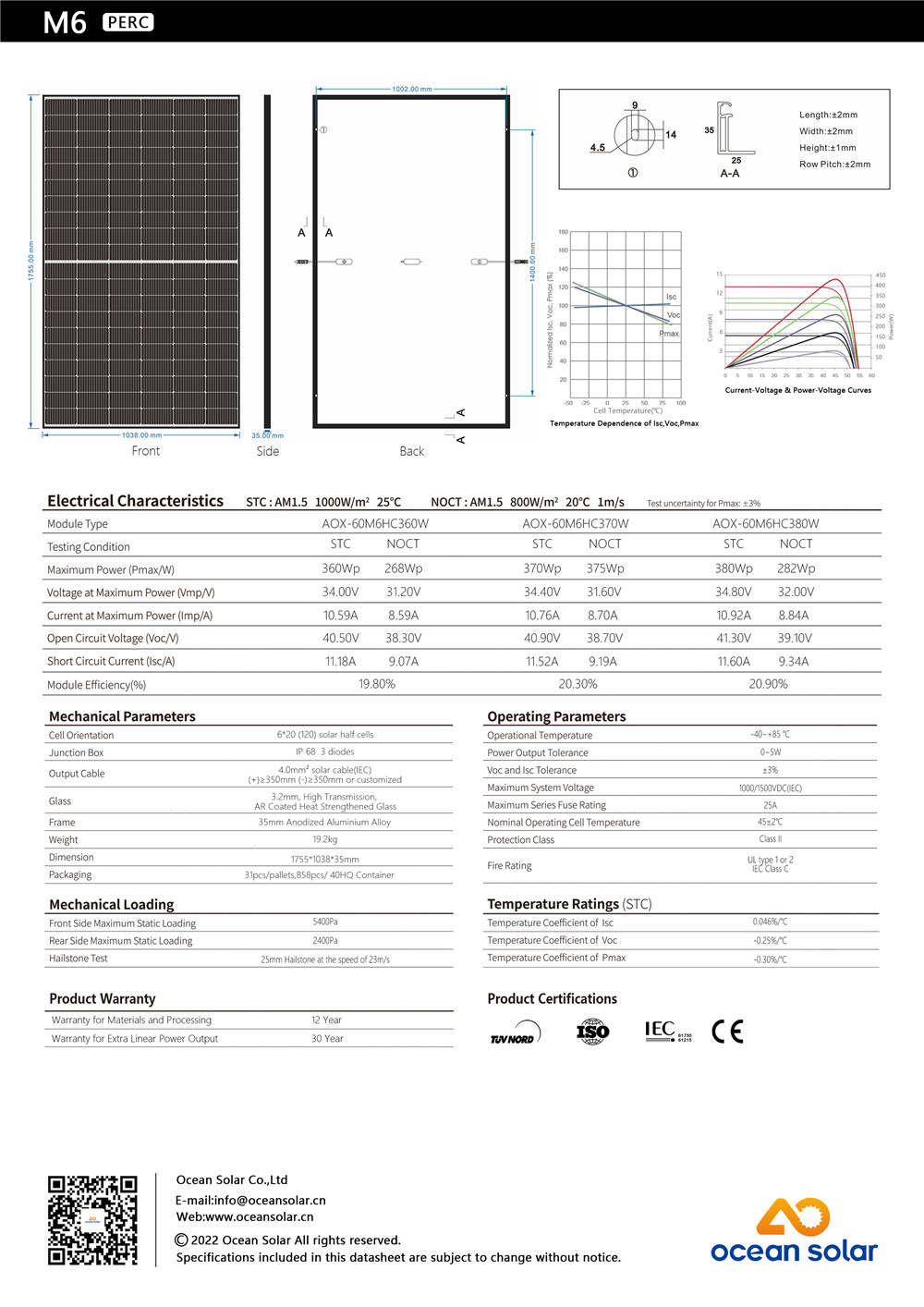

60M6-380W (2)

Product Detail

M6 MBB PERC 120 Half Cell 360W-380W Black Frame Solar Module is a high quality solar panel designed to provide excellent performance, durability and economy. It is manufactured using cutting-edge PERC and MBB technologies, which significantly improves its power generation efficiency. This model is designed with a black frame, making it a beautiful and stylish addition to any residential or commercial property.

A key feature of this solar panel is its PERC technology. PERC stands for Passivated Emitter Rear Cell technology, which allows solar cells to absorb more sunlight and generate more electricity. The technology enhances the overall energy generation capabilities of the panels, making them more efficient than traditional solar panels. With PERC technology, M6 MBB PERC 120 Half Cell 360W-380W Black Frame Solar Module is able to generate more power from the same amount of sunlight.

Another important feature of this model is its 120 half-cells. This design feature distributes the module's power output more evenly and reduces the resistance between cells, thereby improving its overall performance. Additionally, the half-cell design enables it to function more efficiently in harsh weather environments such as wind, rain, snow, and extreme temperatures.

The MBB technology used in this solar panel is another important feature that contributes to higher efficiency. Multiple Bus Bar (MBB) designs use multiple metal strips to distribute current more efficiently, reducing resistance in the module and minimizing energy loss. As a result, more power is generated and the modules have increased energy output.

The durability of this solar panel is also excellent as it is made of high-quality materials such as O-silicon which resists moisture, UV radiation and temperature changes. Plus, it uses tempered glass, which is durable and offers excellent protection from weather, dust, and hail. Overall, the M6 ​​MBB PERC 120 half-cell 360W-380W black frame solar modules are designed to last up to 25 years, making them a very cost-effective investment in the renewable energy sector.

In terms of installation, this solar panel is easy to carry and install, saving time and reducing installation costs. Its lightweight and stylish design is ideal for installation on rooftops, balconies or other places where space is limited. Additionally, the black frame design creates an attractive modern look that blends perfectly with the hotel's design.

Another benefit of this solar panel is its eco-friendliness. Unlike traditional energy sources, solar energy is a clean, renewable energy source that produces no harmful greenhouse gas emissions. By using this model of solar power, homeowners and organizations are directly contributing to reducing carbon emissions and the overall fight against global warming.

In summary, the M6 ​​MBB PERC 120 Half Cell 360W-380W Black Frame Solar Module is an excellent solar panel designed for high efficiency, durability and affordability. Its cutting-edge PERC and MBB technology, half-cell design and black frame construction combine to make it an excellent choice for anyone looking to generate clean and renewable energy while reducing their carbon footprint. With its flexible installation options and long service life, this solar panel is an investment in any homeowner's environmental and financial well-being.
