M6 MBB PERC 120 half cells 360W-380W all black solar module

Short Description:

Assembled with MBB PERC cells, the half-cell configuration of the solar modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.


Product Detail

Product Tags

Product Features

Ultra-high Power Generation/Ultra-high Efficiency
Enhanced Reliability
Lower LID / LETID
High Compatibility
Optimized Temperature Coefficient
Lower Operating Temperature
Optimized Degradation
Outstanding Low Light Performance
Exceptional PID Resistance

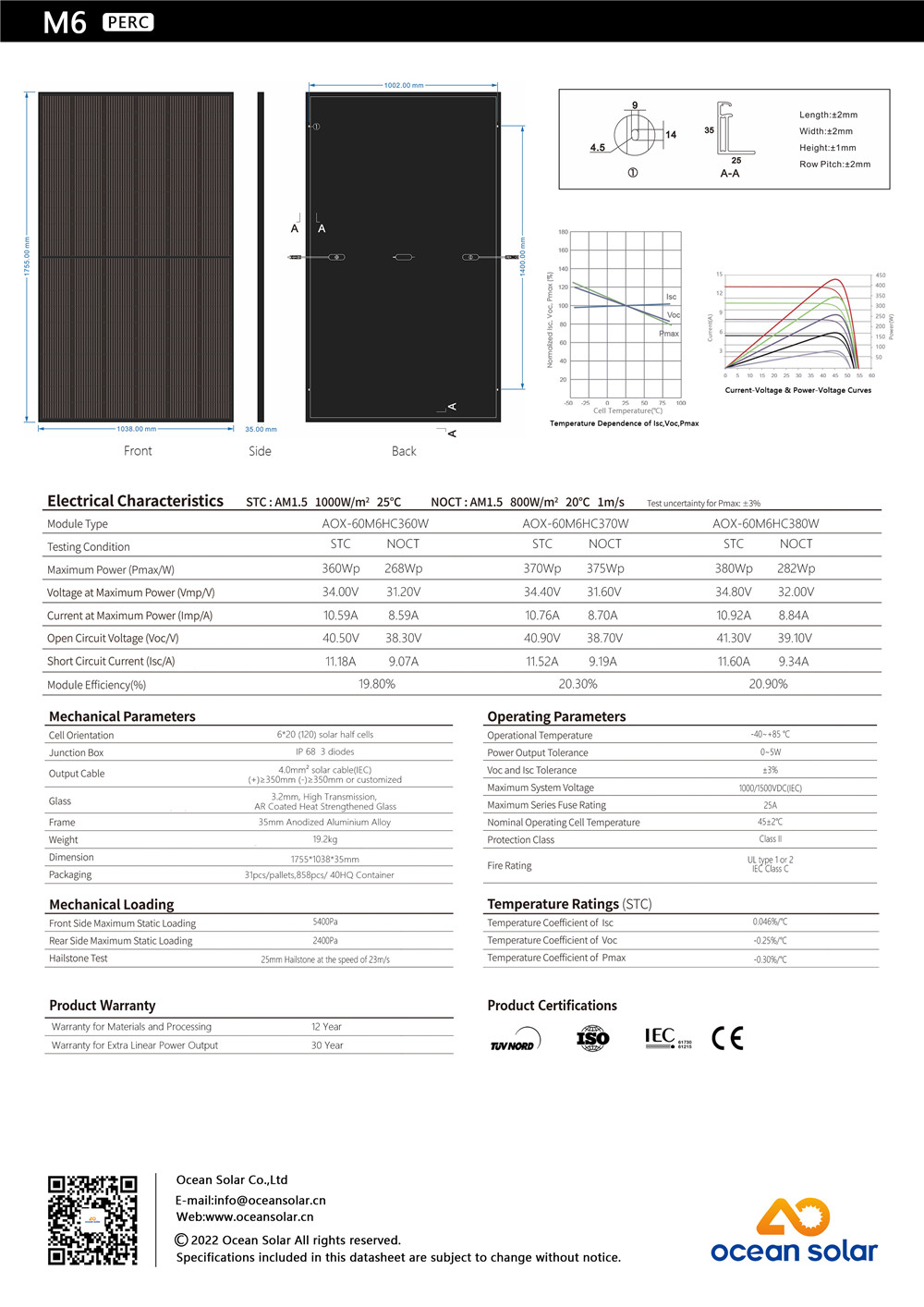

Data Sheet

Cell Mono 166*83mm
No. of cells 120(6×20)
Rated Maximum Power(Pmax) 360W-380W
Maximum Efficiency 19.8-20.9%
Junction Box IP68,3 diodes
Maximum System Voltage 1000V/1500V DC
Operating Temperature -40℃~+85℃
Connectors MC4
Dimension 1755*1038*35mm
No.of one 20GP container 336PCS
No.of one 40HQ container 884PCS

Product Warranty

12-year warranty for materials and processing;
30-year warranty for extra linear power output.

Product Certificate

certificate

Product advantage

* Advanced automated production lines and first-class brand raw material suppliers ensure that solar panels are more reliable.
* All series of solar panels have passed TUV, CE, CQC, ISO,UNI9177- Fire Class 1 quality certification.
* Advanced Half-cells, MBB and PERC solar cell technology, higher solar panel efficiency and economic benefits.
* Grade A quality, more favorable price, 30 years longer service life.

Product Application

Widely used in residential PV system,commercial & industrial PV system,utility-scale PV system,solar energy storage system, solar water pump, home solar system, solar monitoring, solar street lights,etc.

details show

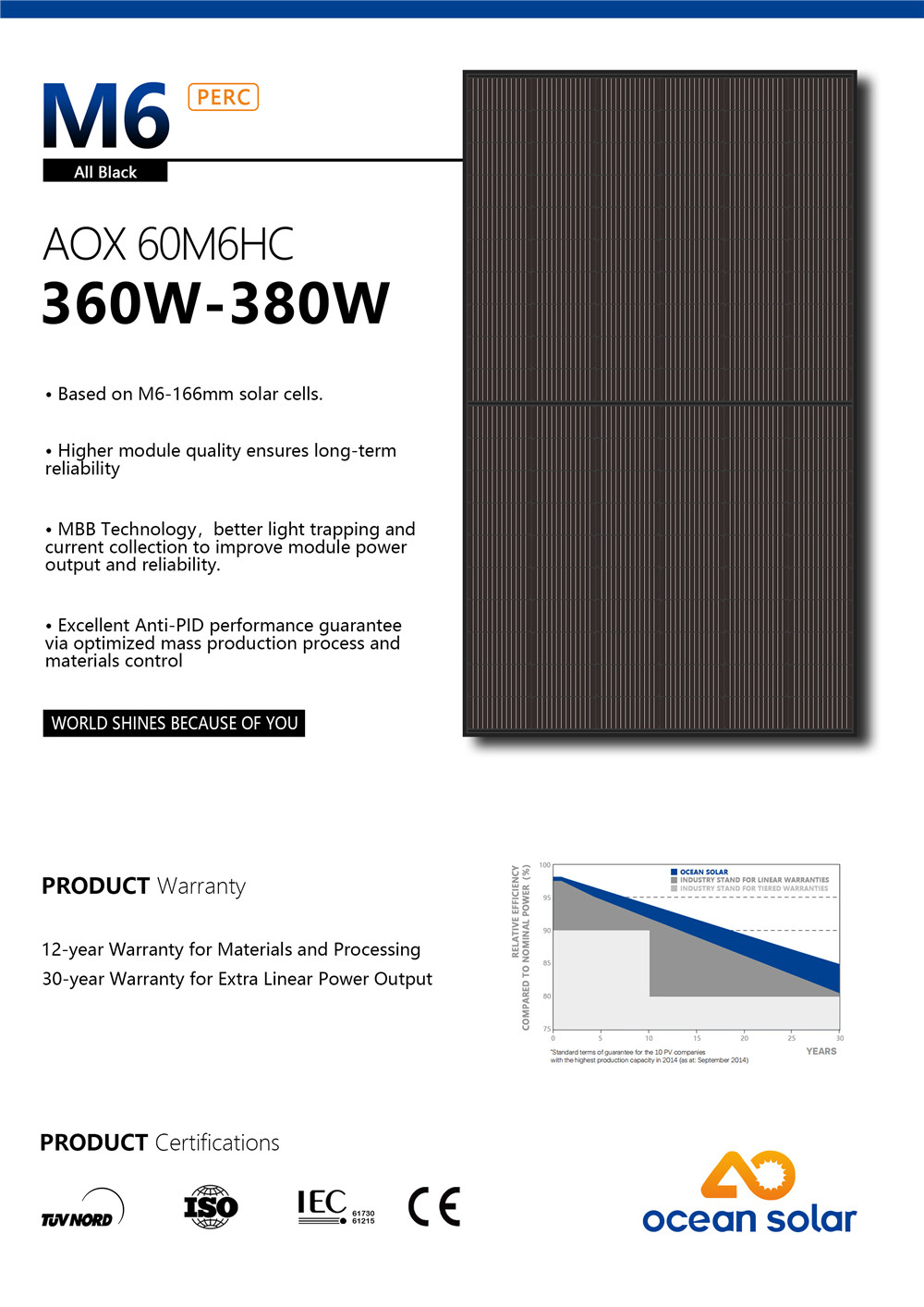

60M6-380W (1)
60M6-380W (2)

why choose M6 MBB PERC 120 half cells 360W-380W all black solar module?

1. High Efficiency: Due to the use of M6 size monocrystalline PERC (Passivated Emitter Rear Cell) solar cells, these solar modules have a high efficiency class. These cells have a higher conversion efficiency, which means they can generate more electricity per square meter.

2. More power output: M6 MBB PERC 120 half-cell 360W-380W all-black solar module can produce an average power output between 360W to 380W. That means it can generate more electricity to meet your home or business's energy needs.

3. Half-cell design: M6 MBB PERC 120 half-cell 360W-380W all-black solar module adopts half-cell design to reduce energy loss caused by shading and improve the overall performance of the module. This design has lower resistance, which increases the output power of the module.

4. Black appearance: M6 MBB PERC 120 half-cell 360W-380W all-black solar module has a black appearance, which can perfectly blend with dark roofs or other installations. This provides a sleek and uniform appearance, making it aesthetically pleasing and ideal for installations where appearance is critical.

5. Durable and Reliable: M6 MBB PERC 120 Half Cell 360W-380W Full Black Solar Module is made of high-quality materials to ensure durability and reliability. It has a tempered glass cover and a sturdy aluminum frame that can withstand harsh weather conditions.

6. Easy to install: M6 MBB PERC 120 half-cell 360W-380W all-black solar module is easy to install, with pre-drilled holes and convenient design, it can be easily installed on different roofs and structures.

7. Warranty and Performance Guarantee: M6 MBB PERC 120 Half Cell 360W-380W Full Black Solar Module comes with a 25-year warranty covering product defects and a linear performance warranty that guarantees higher output up to 25 years.

In summary, the M6 ​​MBB PERC 120 Half Cell 360W-380W Full Black Solar Module is a suitable choice due to its high efficiency rating, power output, half cell design, durability, reliability, ease of installation and performance assurance warranty.
