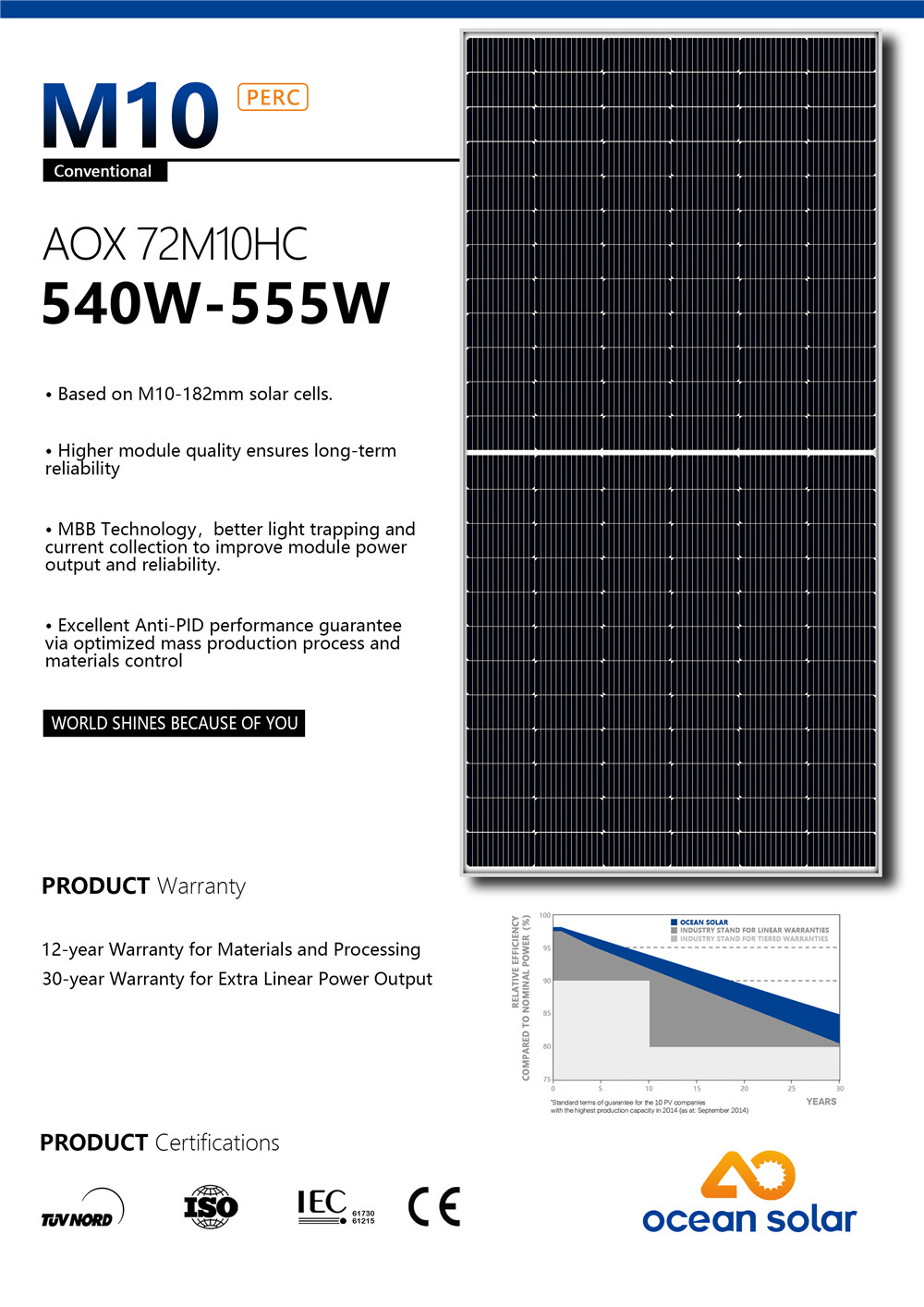

M10 MBB PERC 144 half cells 540W-555W solar module
Ultra-high Power Generation/Ultra-high Efficiency
Enhanced Reliability
Lower LID / LETID
High Compatibility
Optimized Temperature Coefficient
Lower Operating Temperature
Optimized Degradation
Outstanding Low Light Performance
Exceptional PID Resistance

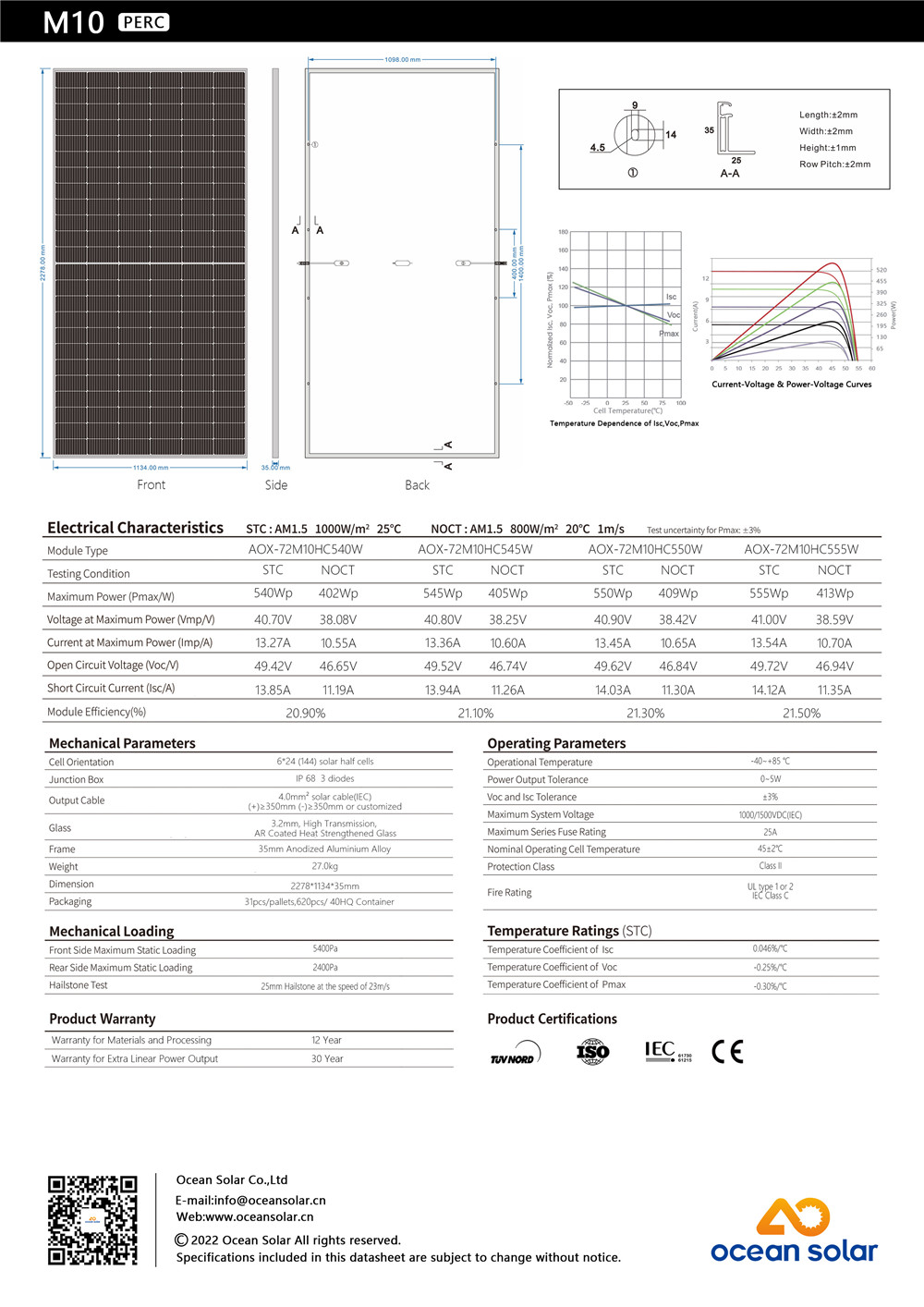

| Cell | Mono 182*91mm |
| No. of cells | 144(6×24) |
| Rated Maximum Power(Pmax) | 540W-555W |
| Maximum Efficiency | 20.9%-21.5% |
| Junction Box | IP68,3 diodes |
| Maximum System Voltage | 1000V/1500V DC |
| Operating Temperature | -40℃～+85℃ |
| Connectors | MC4 |
| Dimension | 2278*1134*35mm |
| No.of one 20GP container | 280PCS |
| No.of one 40HQ container | 620PCS |
12-year warranty for materials and processing;
30-year warranty for extra linear power output.
* Advanced automated production lines and first-class brand raw material suppliers ensure that solar panels are more reliable.
* All series of solar panels have passed TUV, CE, CQC, ISO,UNI9177- Fire Class 1 quality certification.
* Advanced Half-cells, MBB and PERC solar cell technology, higher solar panel efficiency and economic benefits.
* Grade A quality, more favorable price, 30 years longer service life.
Widely used in residential PV system, commercial & industrial PV system, utility-scale PV system, solar energy storage system, solar water pump, home solar system, solar monitoring, solar street lights, etc.
MBB PERC cells, or metal-insulator-substrate-back contact passivated emitter and back contact cells, are a revolutionary development in solar panel manufacturing. Unlike conventional solar cell designs, MBB PERC cells have a unique structure that enables high efficiency and long-term reliability. Here are some advantages of MBB PERC solar cells:
1. High Efficiency: MBB PERC cells are designed to increase the overall efficiency of solar panels. With its unique "passivation" design, MBB PERC cells reduce the amount of recombination that occurs within the solar cell. This in turn increases the amount of energy that can be converted from sunlight into electricity. This means that MBB PERC solar panels can generate more energy even in low light conditions.
2. Long-term reliability: One of the biggest concerns with solar panels is their longevity. MBB PERC cells are specifically designed to withstand the harsh environmental conditions to which solar panels are exposed during their lifetime. The passivation layer protects the cell from contaminants that can reduce efficiency over time. MBB PERC cells have been shown to have a very low degradation rate, which means they can maintain a high energy output for many years.
3. Cost reduction: MBB PERC cells are more cost-effective than conventional solar cells. The manufacturing process of MBB PERC cells is simpler and requires less material, so they are more efficient and less expensive. In addition, MBB PERC cells require less wiring and connections, reducing installation and maintenance costs.
4. Greater design flexibility: MBB PERC cells are thinner and more flexible than conventional solar cells. This means they can be used in a wider range of applications, including curved and irregular surfaces. MBB PERC cells can also be integrated into building materials such as roofing and siding, allowing for a more seamless integration of solar panels into structures.
5. Improve aesthetics: MBB PERC cells are designed with a smooth black surface, which makes the appearance of solar panels more uniform and aesthetically pleasing. This makes them an even more attractive choice for residential and commercial applications where appearance is important.
In conclusion, MBB PERC cells represent a major advancement in solar cell technology. With their high efficiency, long-term reliability, reduced cost, design flexibility and improved aesthetics, MBB PERC cells are becoming an increasingly popular choice for solar panel manufacturers and consumers.
