M10 MBB PERC 144 half cells 540W-555W all black solar module

Short Description:

Assembled with MBB PERC cells, the half-cell configuration of the solar modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.


Product Detail

Product Tags

Product Features

Ultra-high Power Generation/Ultra-high Efficiency
Enhanced Reliability
Lower LID / LETID
High Compatibility
Optimized Temperature Coefficient
Lower Operating Temperature
Optimized Degradation
Outstanding Low Light Performance
Exceptional PID Resistance

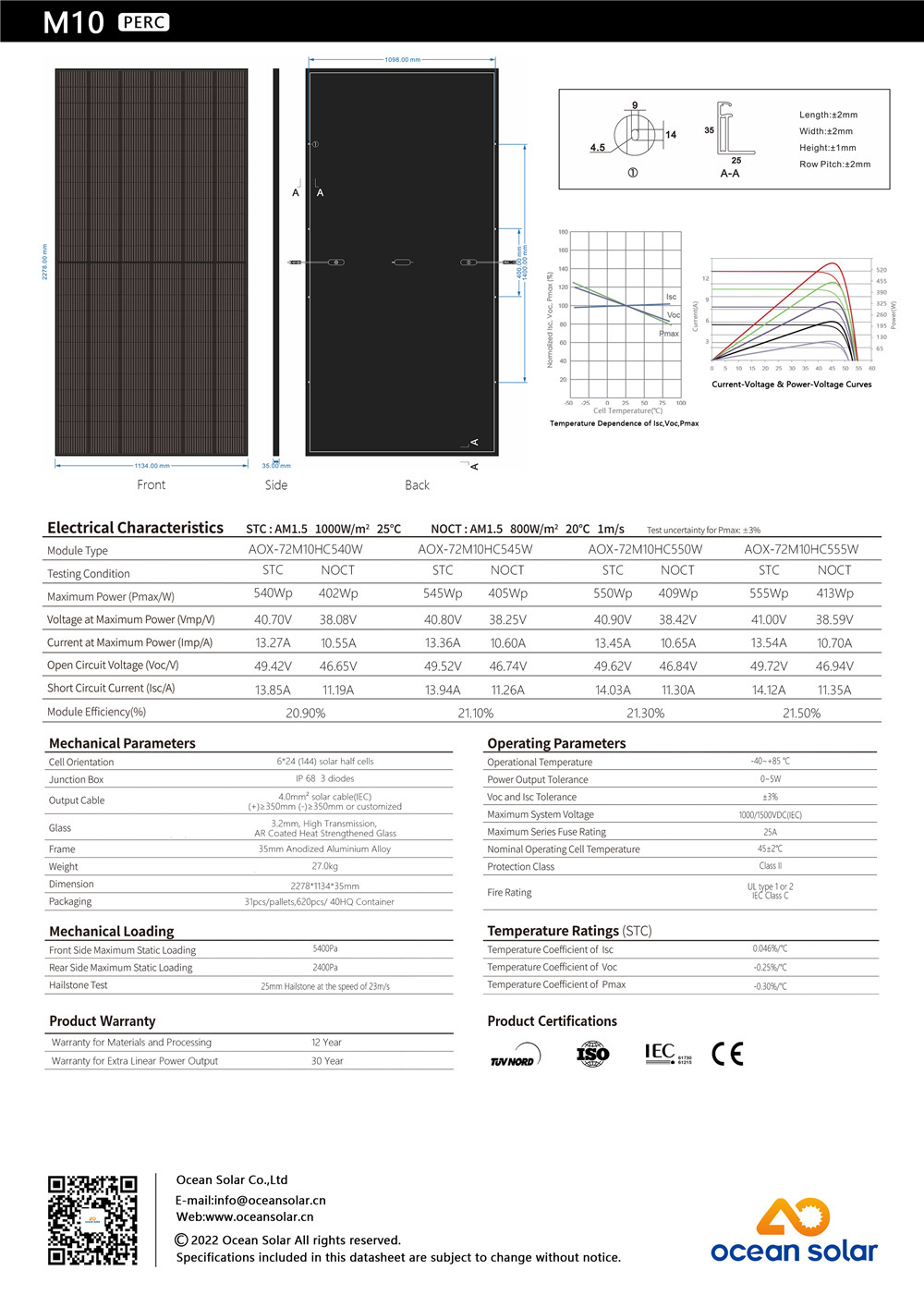

Data Sheet

Cell Mono 182*91mm
No. of cells 144(6×24)
Rated Maximum Power(Pmax) 540W-555W
Maximum Efficiency 20.9-21.5%
Junction Box IP68,3 diodes
Maximum System Voltage 1000V/1500V DC
Operating Temperature -40℃~+85℃
Connectors MC4
Dimension 2278*1134*35mm
No.of one 20GP container 280PCS
No.of one 40HQ container 620PCS

Product Warranty

12-year warranty for materials and processing;
30-year warranty for extra linear power output.

Product Certificate

certificate

Product advantage

* Advanced automated production lines and first-class brand raw material suppliers ensure that solar panels are more reliable.

* All series of solar panels have passed TUV, CE, CQC, ISO,UNI9177- Fire Class 1 quality certification.

* Advanced Half-cells, MBB and PERC solar cell technology, higher solar panel efficiency and economic benefits.

* Grade A quality, more favorable price, 30 years longer service life.

Product Application

Widely used in residential PV system, commercial & industrial PV system, utility-scale PV system, solar energy storage system, solar water pump, home solar system, solar monitoring, solar street lights, etc.

details show

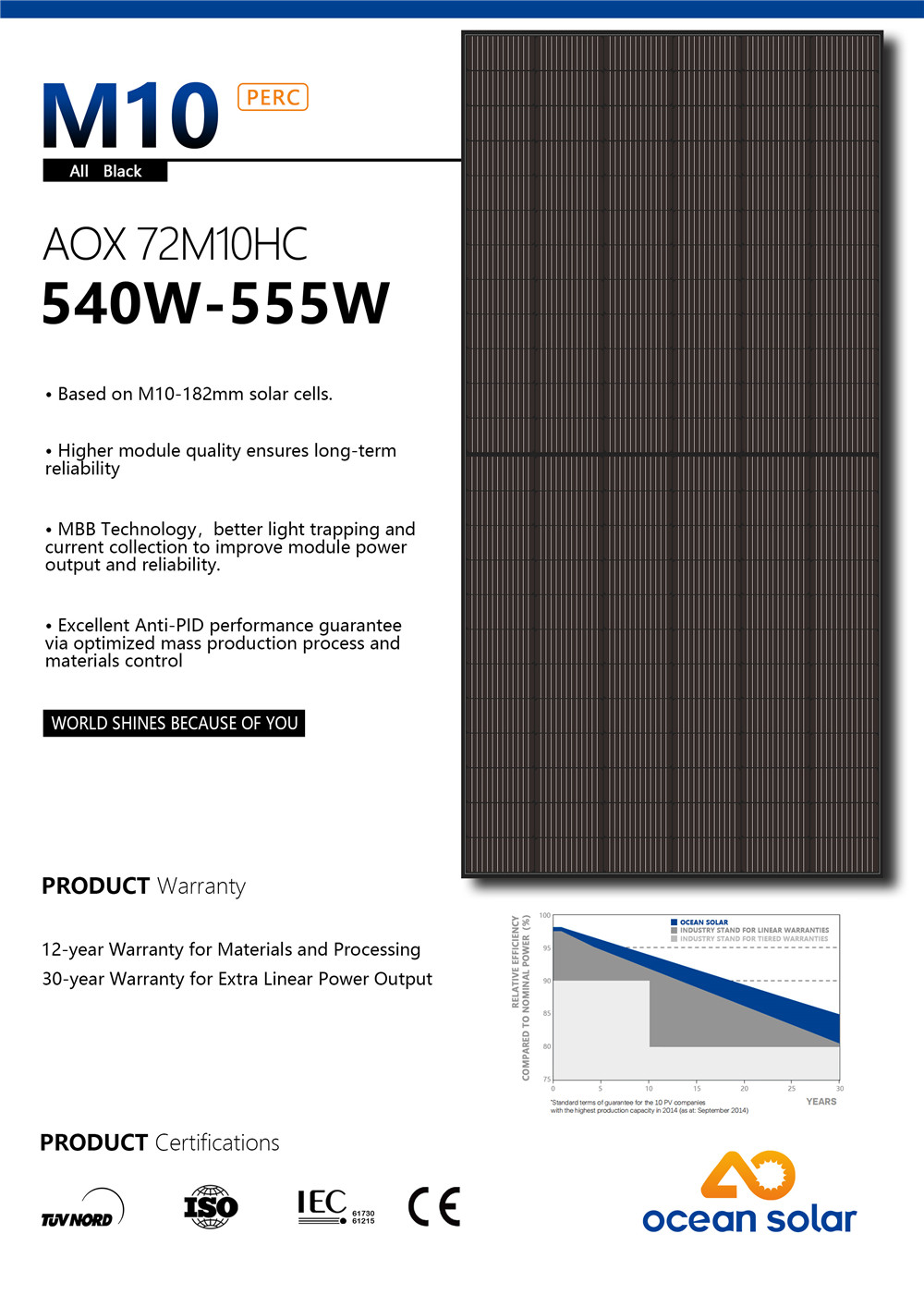

72M10-555W (1)
72M10-555W (2)

Product Detail

The M10 MBB PERC 144 Half Cell 540W-555W All Black Solar Module is a high performance solar panel designed for maximum power output and durability. The solar panel has 144 half-cells and a maximum power output of 540 to 555 watts, making it one of the most efficient solar panels on the market today.

The solar panel's MBB (Multiple Bus Bar) design minimizes cell resistance and increases output power for improved efficiency and performance. The PERC (Passivated Rear Emitter Contact) technology used in this solar panel increases the conversion efficiency of photons to electrons, resulting in better performance in low light and shaded conditions.

The all-black aesthetic of this solar panel is sleek and modern, making it a suitable choice for a variety of architectural styles. The black backplate and frame combined with the black battery give it an elegant look suitable for residential, commercial and industrial applications.

This solar panel complies with international safety and quality standards, including IEC 61215 and IEC 61730. Its advanced design and superior build quality ensure durability and longevity, even under harsh environmental conditions such as hail, snow and high winds.

In summary, the M10 MBB PERC 144 Half Cell 540W-555W All Black Solar Module is a high performance solar panel designed to provide maximum power output and durability in a stylish and elegant package. Its advanced technical features, excellent build quality and aesthetic design make it an excellent choice for a range of applications, both residential and commercial.
