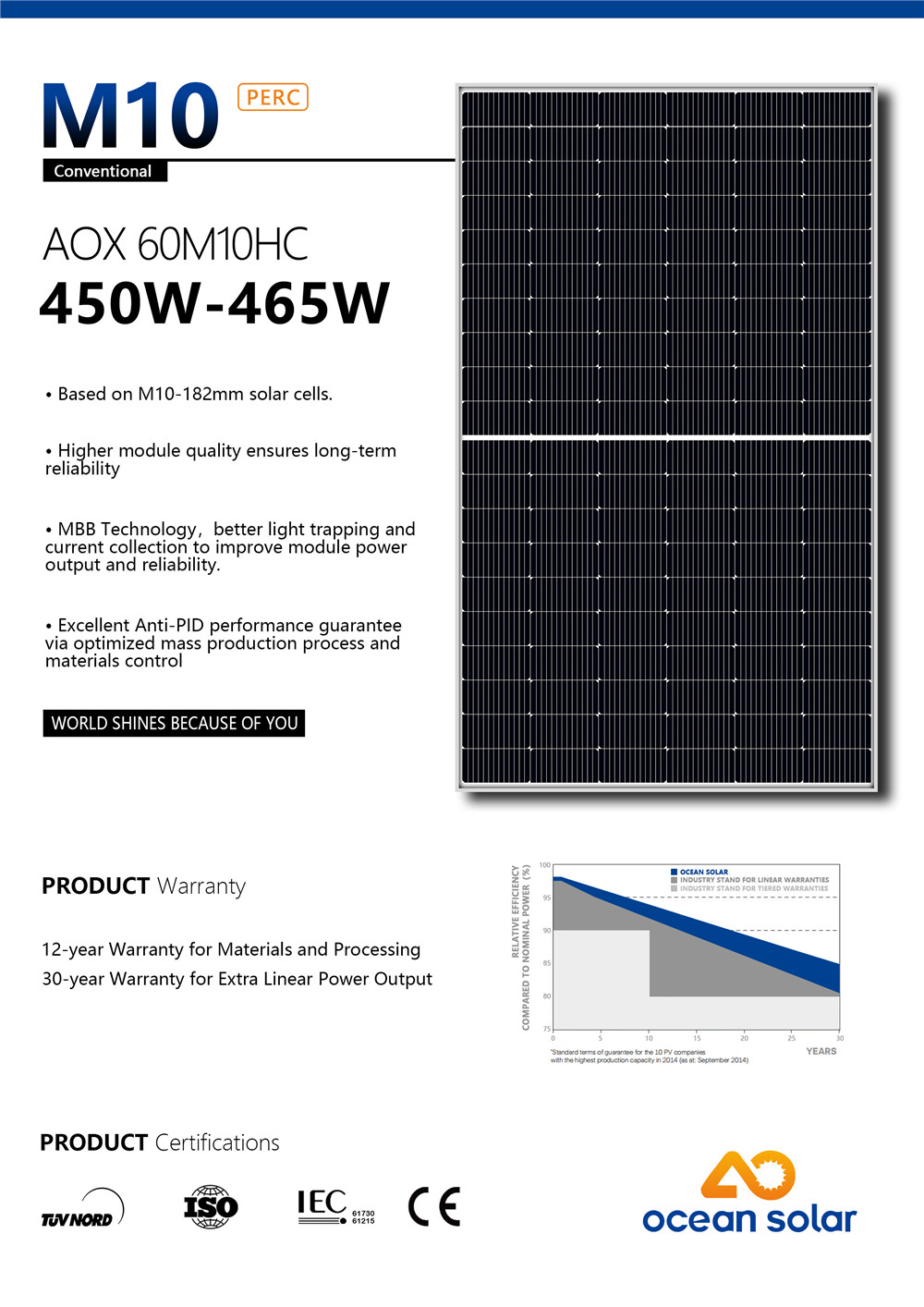

M10 MBB PERC 120 half cells 450W-465W solar module
Ultra-high Power Generation/Ultra-high Efficiency
Enhanced Reliability
Lower LID / LETID
High Compatibility
Optimized Temperature Coefficient
Lower Operating Temperature
Optimized Degradation
Outstanding Low Light Performance
Exceptional PID Resistance

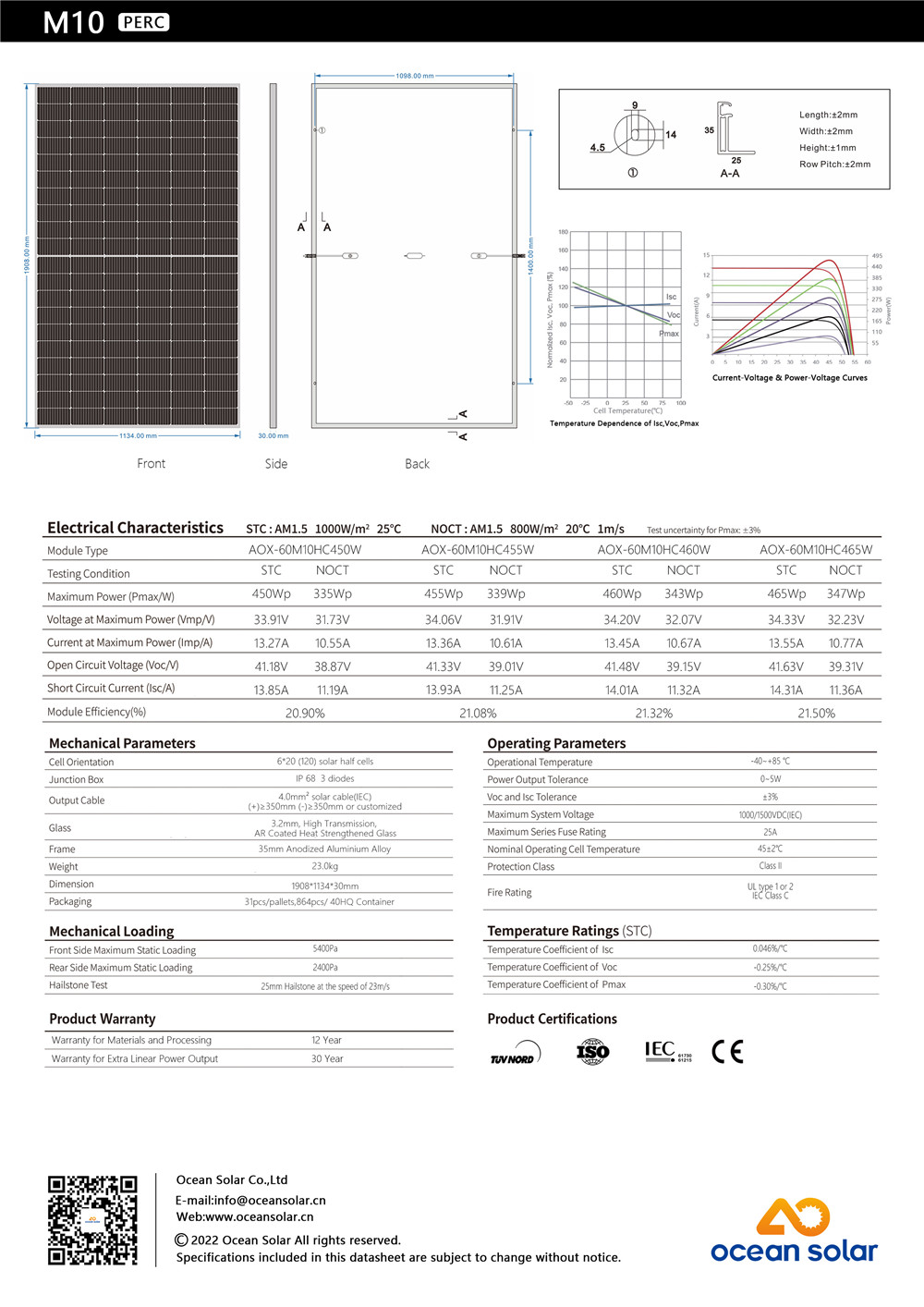

| Cell | Mono 182*91mm |
| No. of cells | 120(6×20) |
| Rated Maximum Power(Pmax) | 450W-465W |
| Maximum Efficiency | 20.8%-21.5% |
| Junction Box | IP68,3 diodes |
| Maximum System Voltage | 1000V/1500V DC |
| Operating Temperature | -40℃～+85℃ |
| Connectors | MC4 |
| Dimension | 1908*1134*30mm |
| No.of one 20GP container | 396PCS |
| No.of one 40HQ container | 864PCS |
12-year warranty for materials and processing;
30-year warranty for extra linear power output.
* Advanced automated production lines and first-class brand raw material suppliers ensure that solar panels are more reliable.
* All series of solar panels have passed TUV, CE, CQC, ISO,UNI9177- Fire Class 1 quality certification.
* Advanced Half-cells, MBB and PERC solar cell technology, higher solar panel efficiency and economic benefits.
* Grade A quality, more favorable price, 30 years longer service life.
Widely used in residential PV system, commercial & industrial PV system, utility-scale PV system, solar energy storage system, solar water pump, home solar system, solar monitoring, solar street lights, etc.
The M10 MBB PERC 120 Half Cell 450W-465W Solar Module is a high performance solar panel that has revolutionized solar technology. It is designed with cutting-edge PERC and MBB technology, which can significantly improve its power generation efficiency. The module is designed with a multifunctional battery to generate higher power output and increase resistance in extreme weather conditions.
• the PERC technology used in this solar module is responsible for improving energy absorption efficiency. With its cutting-edge technology, it allows solar cells to absorb more sunlight and convert it into electricity at a higher rate. Unlike ordinary solar cells, which can only absorb a limited range of sunlight, PERC cells are able to absorb a wider range of sunlight, allowing them to generate more electricity from the same amount of sunlight.
• the MBB technology used in this solar panel further increases its efficiency. A multi-bus design uses multiple bus bars to deliver current from the battery to the output terminals, reducing resistance and improving current flow, reducing energy loss. As a result, more energy is generated, greatly increasing the overall energy-generating capability of the module.
• Another feature that makes this solar module unique is the inclusion of 120 half-cells in the design. These half-cells distribute energy generation capacity and reduce inter-cell resistance. This feature makes this solar panel more reliable, durable and improves its performance in extreme weather conditions such as rain, snow or wind.
• Design-wise, this solar panel features a compact and efficient structure that maximizes power, strength, and durability. The panels are made of high-quality durable materials such as tempered and anti-reflective glass, EVA, TPT and aluminum frames, ensuring their service life of at least up to 25 years.
• the M10 MBB PERC 120 half cells 450W-465W solar module is an environmentally friendly, energy-saving and cost-effective solar panel. With its high efficiency, it uses less space to generate the same amount of electricity as other solar panels. It also reduces dependence on non-renewable energy by generating clean, renewable energy. Plus, it reduces utility costs and reduces your carbon footprint.
In a word, M10 MBB PERC 120 half cells 450W-465W solar module is a high-performance solar panel that adopts advanced PERC and MBB technology to improve its power generation efficiency. Its versatile battery design, multiple busbars, half cells and compact construction work together to make it one of the best solar panels on the market. It is an environmentally friendly, energy-efficient and cost-effective solution for homeowners and commercial property owners who want to generate clean, renewable energy with reduced costs.
