M10 MBB PERC 108 half cells 400W-415W all black solar module

Short Description:

Assembled with MBB PERC cells, the half-cell configuration of the solar modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.


Product Detail

Product Tags

Product Features

Ultra-high Power Generation/Ultra-high Efficiency
Enhanced Reliability
Lower LID / LETID
High Compatibility
Optimized Temperature Coefficient
Lower Operating Temperature
Optimized Degradation
Outstanding Low Light Performance
Exceptional PID Resistance

Data Sheet

Cell Mono 182*91mm
No. of cells 108(6×18)/td>
Rated Maximum Power(Pmax) 400W-415W
Maximum Efficiency 20.5-21.3%
Junction Box IP68,3 diodes
Maximum System Voltage 1000V/1500V DC
Operating Temperature -40℃~+85℃
Connectors MC4
Dimension 1722*1134*30mm
No.of one 20GP container 396PCS
No.of one 40HQ container 936PCS

Product Warranty

12-year warranty for materials and processing;
30-year warranty for extra linear power output.

Product Certificate

certificate

Product advantage

* Advanced automated production lines and first-class brand raw material suppliers ensure that solar panels are more reliable.

* All series of solar panels have passed TUV, CE, CQC, ISO,UNI9177- Fire Class 1 quality certification.

* Advanced Half-cells, MBB and PERC solar cell technology, higher solar panel efficiency and economic benefits.

* Grade A quality, more favorable price, 30 years longer service life.

Product Application

Widely used in residential PV system, commercial & industrial PV system, utility-scale PV system, solar energy storage system, solar water pump, home solar system, solar monitoring, solar street lights, etc.

details show

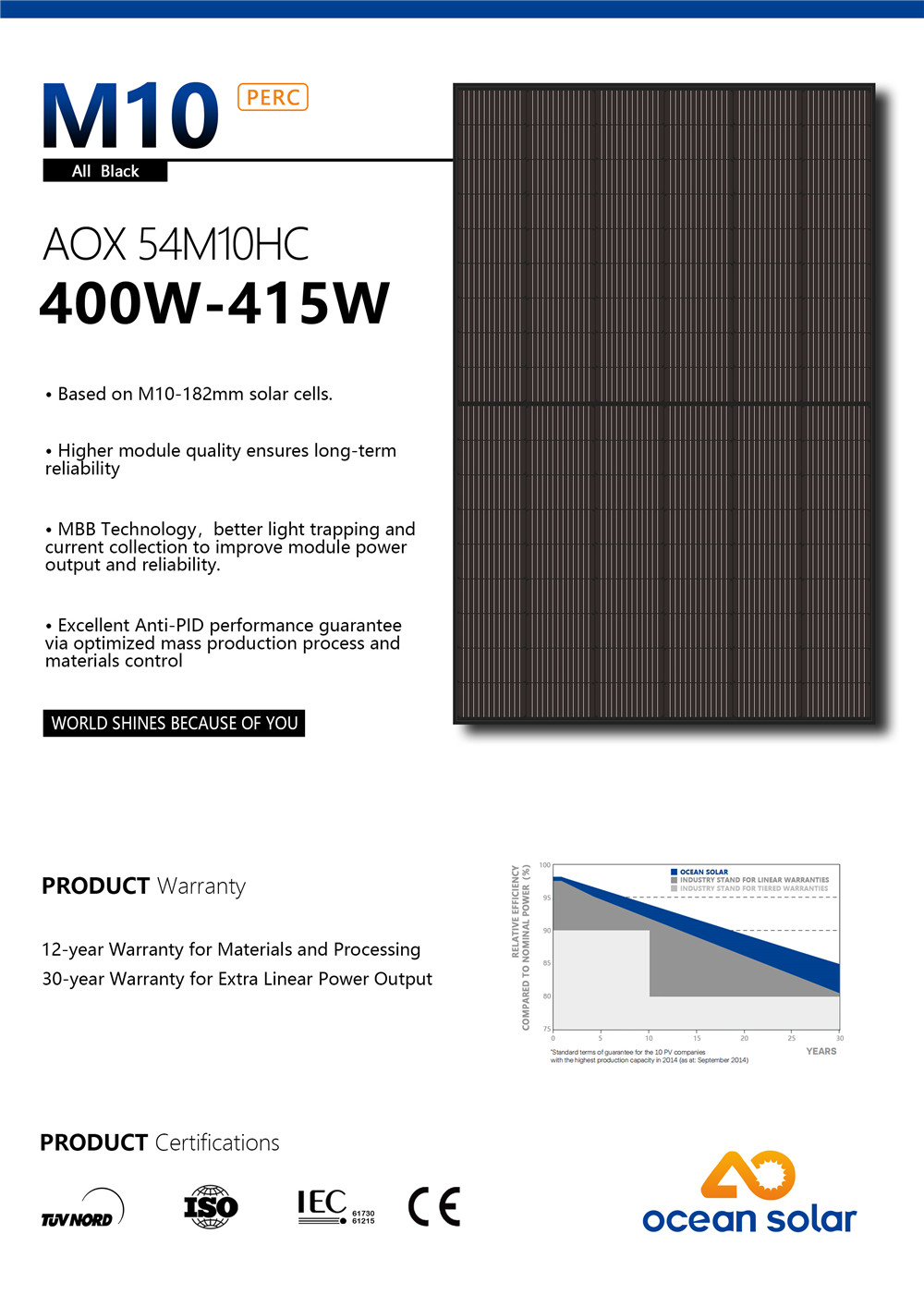

54M10-415W (1)

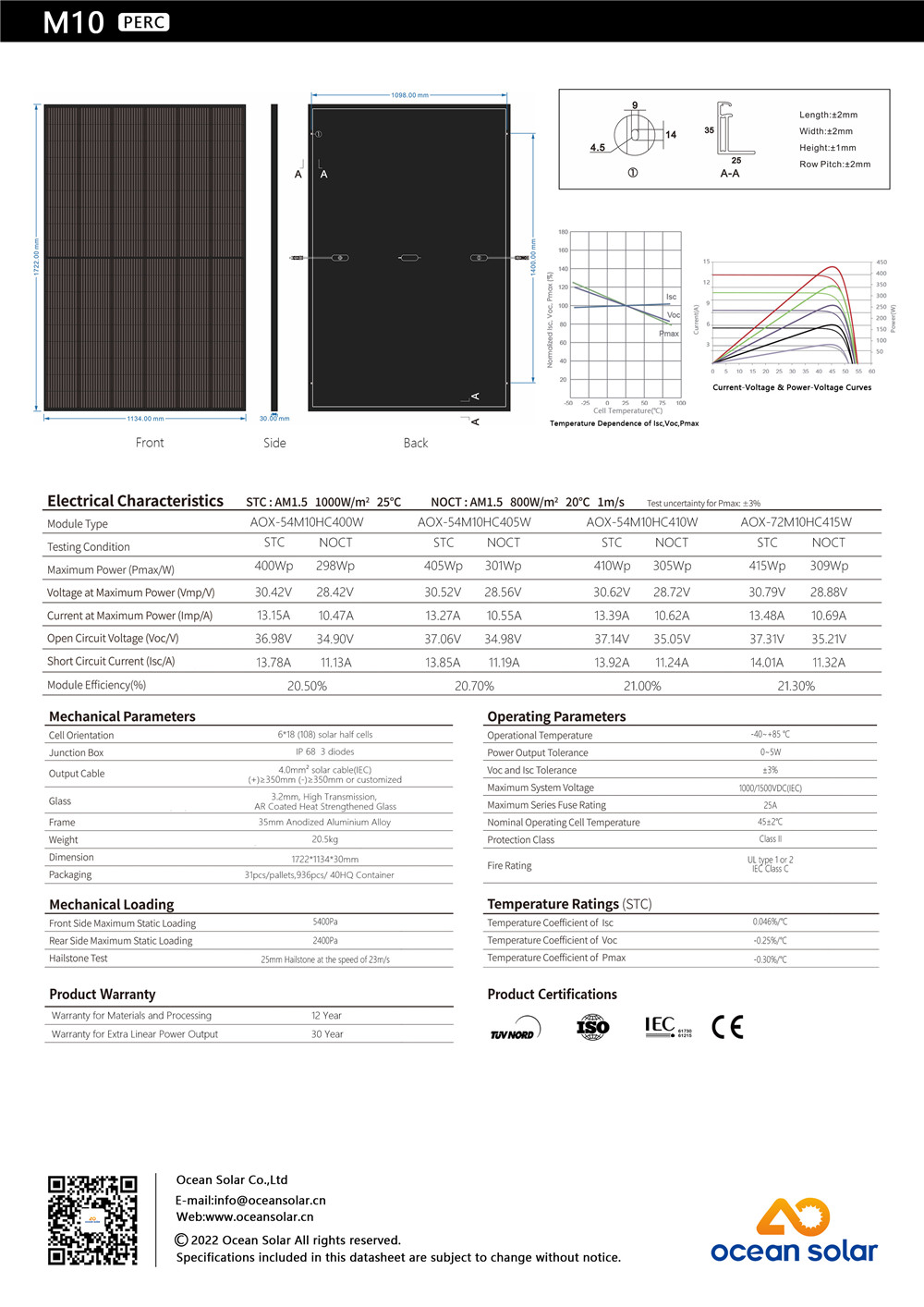

54M10-415W (2)

Product Detail

M10 MBB PERC 108 Half Cell 400W-415W Full Black Solar Module is the most advanced solar panel with high efficiency and durability in a stylish and elegant package. This solar panel boasts a maximum power output of 400 to 415 watts thanks to its MBB (Multi Bus Bar) design which minimizes battery resistance and increases output power.

The PERC (Passivated Emitter Rear Contact) technology used in this solar panel improves the conversion efficiency of photons to electrons. Light that is not absorbed is reflected back into the cell, increasing absorption and power output. The advanced features of this technology allow the solar panel to perform well in low light conditions such as early morning and cloudy days.

M10 MBB PERC 108 half-cell 400W-415W full black solar modules comply with international safety and quality standards including IEC 61215 and IEC 61730. With these certifications, the panel is able to withstand harsh environmental conditions such as hail, snow and high winds, ensuring a service life of more than 25 years.

the benefit of Full Black Solar Module

All-black solar modules have a black, uniform appearance designed to blend well with dark roofs or other installations. Here are some benefits of using all black solar modules:

1. Aesthetics: All black solar modules offer a sleek and sophisticated look that appeals to many homeowners, especially those with modern and contemporary home styles. The uniform black of the solar panels creates a clean and consistent look on the roof.

2. Better Curb Appeal: Compared to traditional solar panels, all black solar panels have better curb appeal. Since they blend well with the roof, they look more complete and aesthetically pleasing. Solar panels look unobtrusive on a roof, perfect for homeowners associations with strict aesthetic guidelines.

3. More energy-efficient: All-black solar modules use a black backsheet, which helps reduce reflection and increase light absorption. This means they are more energy efficient than traditional solar panels because they can generate more electricity from the same amount of sunlight.

4. High-quality materials: All black solar panels are made of high-quality materials that meet international safety and quality standards. They are manufactured using tempered glass, which makes them extremely durable and resistant to scratches and cracks.

5. Increased durability: The all black solar panel has a stronger and more durable backsheet, which makes it more resistant to extreme weather conditions such as hail, strong wind and heavy snow. They are more tolerant to temperature changes and can last for decades.

6. Low glare: All black solar panel with low glare design, less reflection and better visual effect. This means they are less of a distraction than traditional solar panels, making them ideal for installing rooftop solar in populated areas.

7. Higher ROI: All black solar panels offer a higher ROI because they are more efficient, durable and aesthetically pleasing. They increase the value of your property by lowering your energy bills and reducing your carbon footprint.

In summary, all-black solar modules offer several advantages over traditional solar panels. Their sleek, uniform appearance, superior energy efficiency and increased durability make them an attractive option for homeowners and businesses alike.
