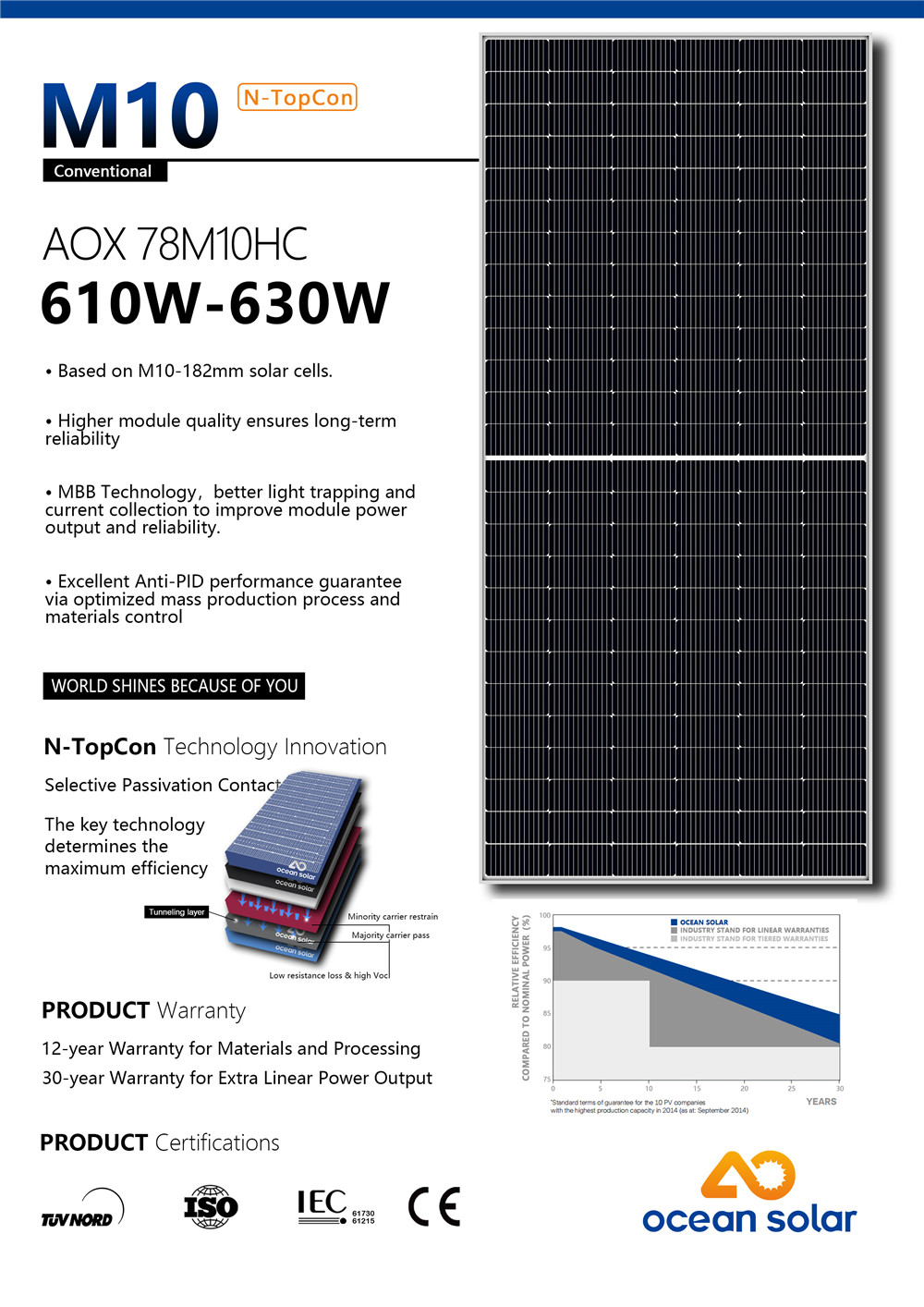

M10 MBB ,N-Type TopCon 156 half cells 610W-630W solar module
Ultra-high Power Generation/Ultra-high Efficiency
Enhanced Reliability
Lower LID / LETID
High Compatibility
Optimized Temperature Coefficient
Lower Operating Temperature
Optimized Degradation
Outstanding Low Light Performance
Exceptional PID Resistance

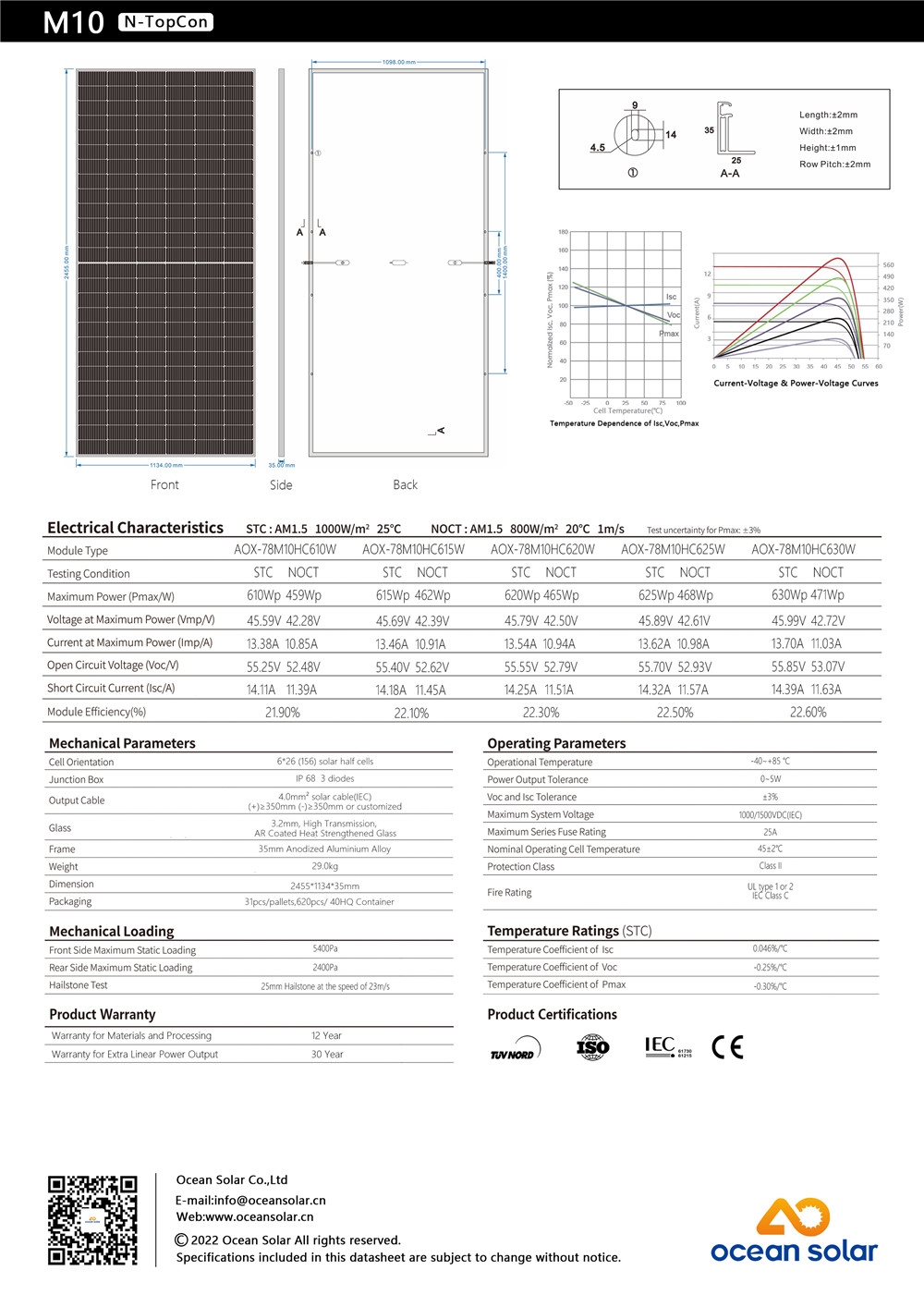

| Cell | Mono 182*91mm |
| No. of cells | 156(6×26) |
| Rated Maximum Power(Pmax) | 610W-630W |
| Maximum Efficiency | 21.9%-22.6% |
| Junction Box | IP68,3 diodes |
| Maximum System Voltage | 1000V/1500V DC |
| Operating Temperature | -40℃～+85℃ |
| Connectors | MC4 |
| Dimension | 2455*1134*35mm |
| No.of one 20GP container | 224PCS |
| No.of one 40HQ container | 620PCS |
12-year warranty for materials and processing;
30-year warranty for extra linear power output.
* Advanced automated production lines and first-class brand raw material suppliers ensure that solar panels are more reliable.
* All series of solar panels have passed TUV, CE, CQC, ISO,UNI9177- Fire Class 1 quality certification.
* Advanced Half-cells, MBB and PERC solar cell technology, higher solar panel efficiency and economic benefits.
* Grade A quality, more favorable price, 30 years longer service life.
Widely used in residential PV system, commercial & industrial PV system, utility-scale PV system, solar energy storage system, solar water pump, home solar system, solar monitoring, solar street lights, etc.
The M10 MBB N Type TopCon 156 Half Cell 610W-630W Solar Module is a powerful and efficient solar panel for large commercial and utility scale installations. It uses advanced technology for higher energy output and advanced durability for outstanding performance in harsh weather conditions.
Here are some key features and technologies that make the M10 MBB N-Type TopCon 156 Half Cell 610W-630W Solar Module an outstanding choice:
1. Multi Busbar (MBB) Technology: Similar to the model described earlier, it uses MBB technology and multiple thin metal wires to increase the conductivity of solar electricity, the main difference in this particular case is the use of modules such as N-type TopCon number of batteries in .
2. N-type TopCon technology: M10 MBB N-type TopCon 156 half-cell solar module adopts N-type crystal and TopCon passivation. TopCon technology consists of a thin layer of highly doped silicon encapsulated on the back of the solar cell, enabling the solar cell to capture more sunlight and convert it into electricity, improving energy efficiency. In addition, N-type crystals have higher conversion efficiency and better resistance to degradation than P-type crystals.
3. Half-Cell Technology: Similar to previous modules, the M10 MBB N-type TopCon 156 half-cell solar module uses half-cell technology to halve the solar cell size, making the panel more resistant to micro-cracks and high-temperature damage points, while improving the efficiency of the panel overall .
4. Double-glass design: The module adopts a double-glass structure, the degradation rate is much lower, and the module efficiency is higher.
5. High energy output: This module has a high energy output of 610W-630W, ideal for larger installations requiring higher power levels.
The M10 MBB N-Type TopCon 156 Half-Cell 610W-630W Solar Module is backed by a 30-year performance warranty, guaranteeing long-lasting high performance, making it a very solid investment for large solar systems.
