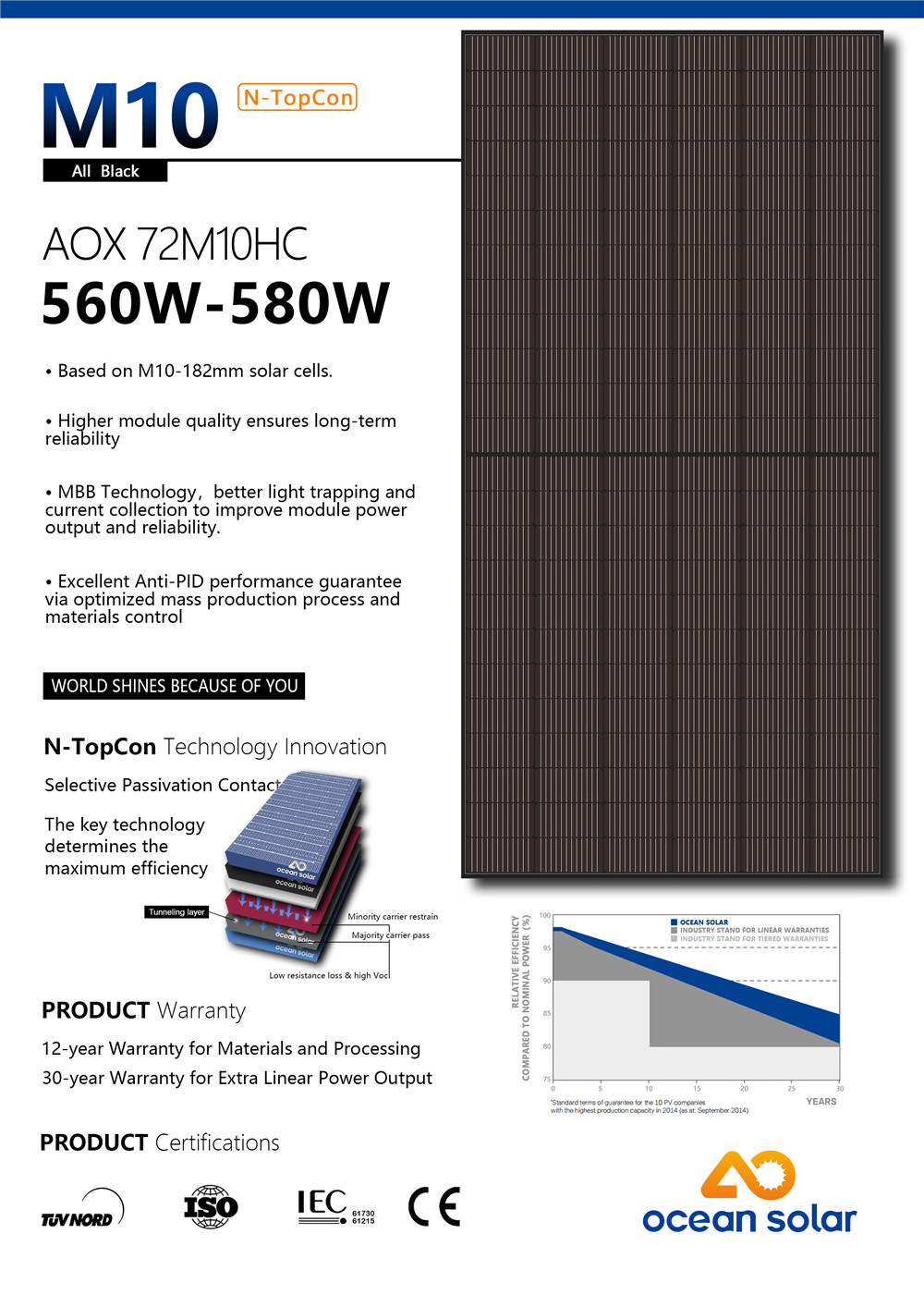

M10 MBB, N-Type TopCon 144 half cells 560W-580W all black solar module
Ultra-high Power Generation/Ultra-high Efficiency
Enhanced Reliability
Lower LID / LETID
High Compatibility
Optimized Temperature Coefficient
Lower Operating Temperature
Optimized Degradation
Outstanding Low Light Performance
Exceptional PID Resistance
| Cell | Mono 182*91mm |
| No. of cells | 108(6×18) |
| Rated Maximum Power(Pmax) | 420W-435W |
| Maximum Efficiency | 21.5-22.3% |
| Junction Box | IP68,3 diodes |
| Maximum System Voltage | 1000V/1500V DC |
| Operating Temperature | -40℃～+85℃ |
| Connectors | MC4 |
| Dimension | 1722*1134*30mm |
| No.of one 20GP container | 396PCS |
| No.of one 40HQ container | 936PCS |
12-year warranty for materials and processing;
30-year warranty for extra linear power output.
* Advanced automated production lines and first-class brand raw material suppliers ensure that solar panels are more reliable.
* All series of solar panels have passed TUV, CE, CQC, ISO,UNI9177- Fire Class 1 quality certification.
* Advanced Half-cells, MBB and PERC solar cell technology, higher solar panel efficiency and economic benefits.
* Grade A quality, more favorable price, 30 years longer service life.
Widely used in residential PV system, commercial & industrial PV system, utility-scale PV system, solar energy storage system, solar water pump, home solar system, solar monitoring, solar street lights, etc.
The M10 MBB N-Type TopCon 144 Half Cell 560W-580W All Black Solar Module is a high performance solar panel designed for maximum power output and durability.
The solar panel has 144 half-cells and a maximum power output of 560 to 580 watts, making it one of the most efficient solar panels on the market today. The solar panel's MBB (Multiple Bus Bar) design minimizes cell resistance and increases output power for improved efficiency and performance.
The N-type TopCon technology used in this solar panel improves photon-to-electron conversion efficiency, resulting in better performance in low light and shaded conditions. The technology also improves battery reliability and reduces power decay over time.
The all-black design of this solar panel is sleek and modern, making it a suitable choice for a variety of architectural styles. The black backplate and frame combined with the black battery give it an elegant look suitable for residential, commercial and industrial applications.
The M10 MBB (Multi-Busbar) solar module is the latest advancement in solar technology. It is designed to offer higher power output and efficiency, making it an ideal choice for residential, commercial, and industrial applications.
Here are some of the benefits of using M10 MBB solar modules:
1. Efficient Power Generation: The M10 MBB solar panel utilizes PERC technology and 144 half-cells to maximize its power output and efficiency. The module is capable of generating up to 450 watts of power, making it one of the most efficient panels on the market.
2. Space Saving Design: The M10 MBB solar module has a compact design that reduces the module footprint and saves space in installations. The smaller size also makes it easier to handle and transport, reducing the cost of logistics.
3. Improved Durability: The M10 MBB solar module has a strengthened design that makes it more robust and durable. In case of extreme weather conditions like wind, hail, and snow, it can withstand the impact without breaking.
4. High-Quality Materials: The M10 MBB solar panel has a high-quality construction using materials that meet international safety and quality standards
