Wholesale M10 MBB, N-Type Top Con 108 half cells 420W-435W all black solar module factory and suppliers | Ocean Solar

M10 MBB, N-Type Top Con 108 half cells 420W-435W all black solar module

Short Description:

Assembled with MBB,N-Type Top Con cells, the half-cell configuration of the solar modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.


Product Detail

Product Tags

Product Features

Ultra-high Power Generation/Ultra-high Efficiency
Enhanced Reliability
Lower LID / LETID
High Compatibility
Optimized Temperature Coefficient
Lower Operating Temperature
Optimized Degradation
Outstanding Low Light Performance
Exceptional PID Resistance

Data Sheet

Cell Mono 182*91mm
No. of cells 108(6×18)
Rated Maximum Power(Pmax) 420W-435W
Maximum Efficiency 21.5-22.3%
Junction Box IP68,3 diodes
Maximum System Voltage 1000V/1500V DC
Operating Temperature -40℃~+85℃
Connectors MC4
Dimension 1722*1134*30mm
No.of one 20GP container 396PCS
No.of one 40HQ container 936PCS

Product Warranty

12-year warranty for materials and processing;
30-year warranty for extra linear power output.

Product Certificate

certificate

Product advantage

* Advanced automated production lines and first-class brand raw material suppliers ensure that solar panels are more reliable.

* All series of solar panels have passed TUV, CE, CQC, ISO,UNI9177- Fire Class 1 quality certification.

* Advanced Half-cells, MBB and PERC solar cell technology, higher solar panel efficiency and economic benefits.

* Grade A quality, more favorable price, 30 years longer service life.

Product Application

Widely used in residential PV system, commercial & industrial PV system, utility-scale PV system, solar energy storage system, solar water pump, home solar system, solar monitoring, solar street lights, etc.

Product Application

Widely used in residential PV system, commercial & industrial PV system, utility-scale PV system, solar energy storage system, solar water pump, home solar system, solar monitoring, solar street lights, etc.

details show

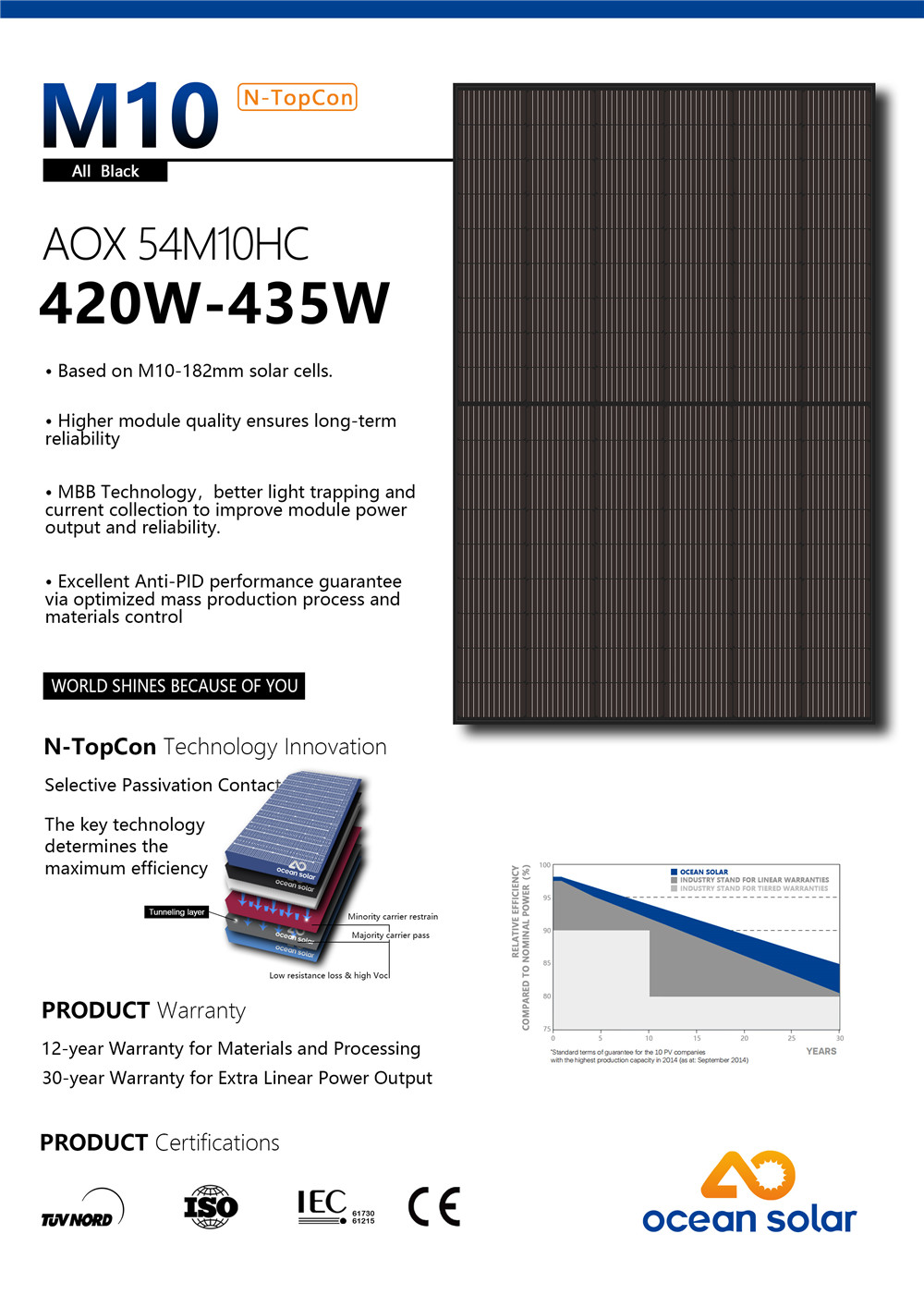

54M10-435W (1)

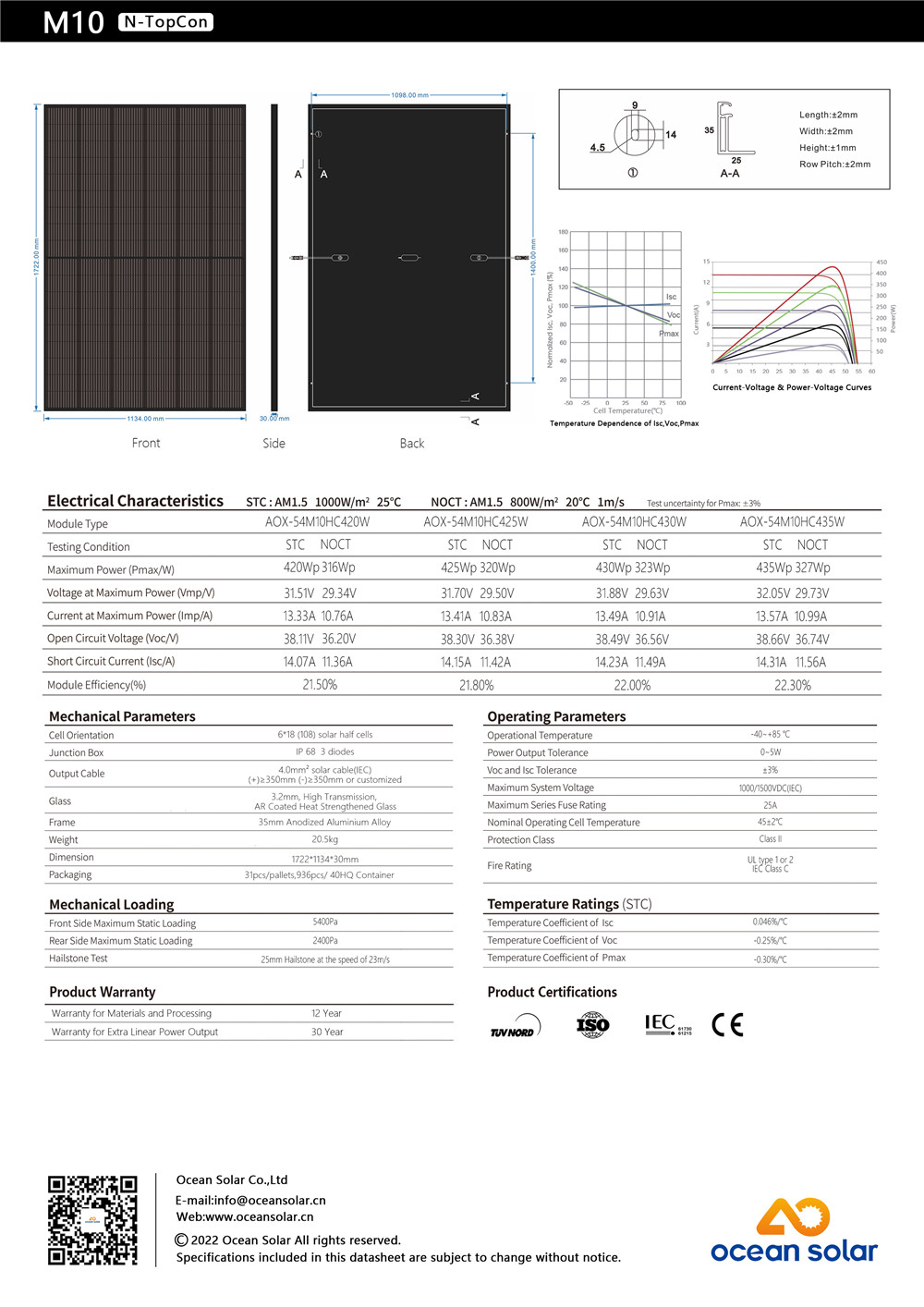

54M10-435W (2)

Product Detail

M10 MBB, N Type Top Con 108 Half Cell All Black Solar Module is a high performance solar panel utilizing advanced technology to deliver impressive power output. It features 108 half-cells to maximize overall conversion efficiency and improve its performance in low-light conditions.

The module has a maximum power output of 420 to 435 watts, making it an efficient choice for residential, commercial and industrial applications. The MBB (Multiple Busbar) technology used in this solar panel reduces its internal resistance and increases its conductivity, thereby increasing power density and improving overall performance.

The N-type cells used in the module are more efficient and have lower degradation rates than conventional P-type cells, ensuring long-term performance and increased energy yield. The module's all-black design provides a sleek and attractive appearance, with a black frame and backplate and black solar cells, making it ideal for installations that require a more aesthetically pleasing design.

This solar panel is manufactured to strict international safety and quality standards, including IEC 61215 and IEC 61730. Plus, its durable construction is designed to withstand harsh weather conditions such as hail, snow and high winds, making it a reliable and durable product - a long-lasting choice for many different applications.

why choose N-Type Top Con solar module?

N-type Top Con solar modules are a good choice for the following reasons:

1. High efficiency: N-type Top Con solar modules have higher conversion efficiency than traditional solar modules. The N-type solar cells in these modules have better photon absorption, lower heat loss, and higher open-circuit voltage, all of which contribute to higher overall efficiency.

2. Better performance in low light conditions: Due to the improved spectral response, the N-type cells in these modules perform better in low light conditions than conventional solar modules. As such, they are ideal for areas with little sunlight or frequent cloud cover.

3. Higher durability: N-type cells are more resistant to degradation caused by sunlight, temperature and environmental factors. This means that N-type Top Con solar modules are more durable, providing reliable long-term performance even in harsh weather conditions.

4. Reduced degradation over time: N-type cells have a stable atomic structure and experience minimal degradation over time. This results in less power loss during the life of the module, providing more consistent performance over time.

5. Better temperature coefficient: N-type cells in these modules have a better temperature coefficient than conventional cells. This means they generate more electricity at higher temperatures, making them suitable for hotter climates.

6. Environmental sustainability: N-type Top Con solar modules are also an environmentally sustainable option. The modules do not use lead, cadmium, or other hazardous substances, making them safe for installers and the environment. Additionally, the modules are designed and manufactured to reduce carbon emissions and waste during production.

7. Higher output: N-type Top Con solar modules produce higher output than conventional batteries, which means fewer modules are needed to meet the same energy demand. This can reduce overall installation costs.

In conclusion, N-Type Top Con Solar Module is an excellent choice due to its high efficiency, better performance in low light conditions, higher durability, less degradation over time, better temperature coefficient, environmental sustainability and higher output. These characteristics make N-type Top Con solar modules an attractive and cost-effective choice for residential and commercial solar installations.
