M10 MBB PERC 144 half cells 540W-555W bifacial solar module

Short Description:

Assembled with MBB PERC cells, the half-cell configuration of the solar modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.

Product Detail

Product Tags

Product Features

Ultra-high Power Generation/Ultra-high Efficiency
Higher Bifacial Gain
Enhanced Reliability
High Compatibility
Optimized Temperature Coefficient
Lower Operating Temperature
Optimized Degradation
Outstanding Low Light Performance
Exceptional PID Resistance

Data Sheet

Cell Mono 182*91mm
No. of cells 144(6×24)
Rated Maximum Power(Pmax) 540W-555W
Maximum Efficiency 20.9-21.5%
Junction Box IP68,3 diodes
Maximum System Voltage 1000V/1500V DC
Operating Temperature -40℃~+85℃
Connectors MC4
Dimension 2278*1134*35mm
No.of one 20GP container ///
No.of one 40HQ container 620PCS

Product Warranty

12-year warranty for materials and processing;
30-year warranty for extra linear power output.

Product Certificate


Product advantage

* Advanced automated production lines and first-class brand raw material suppliers ensure that solar panels are more reliable.

* All series of solar panels have passed TUV, CE, CQC, ISO,UNI9177- Fire Class 1 quality certification.

* Advanced Half-cells, MBB and PERC solar cell technology, higher solar panel efficiency and economic benefits.

* Grade A quality, more favorable price, 30 years longer service life.

Product Application

Widely used in residential PV system, commercial & industrial PV system, utility-scale PV system, solar energy storage system, solar water pump, home solar system, solar monitoring, solar street lights, etc.

details show

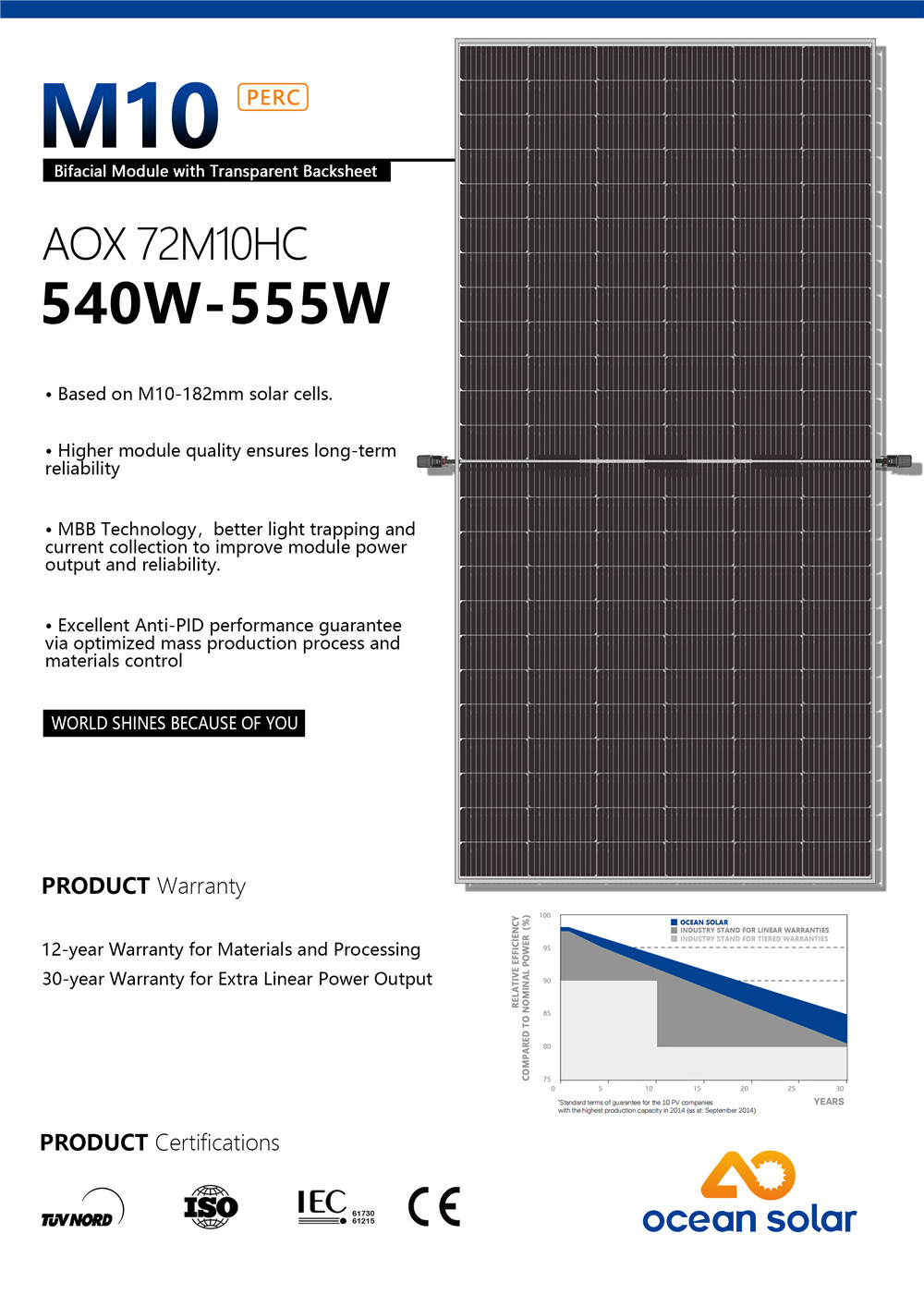

72M10-555W (1)

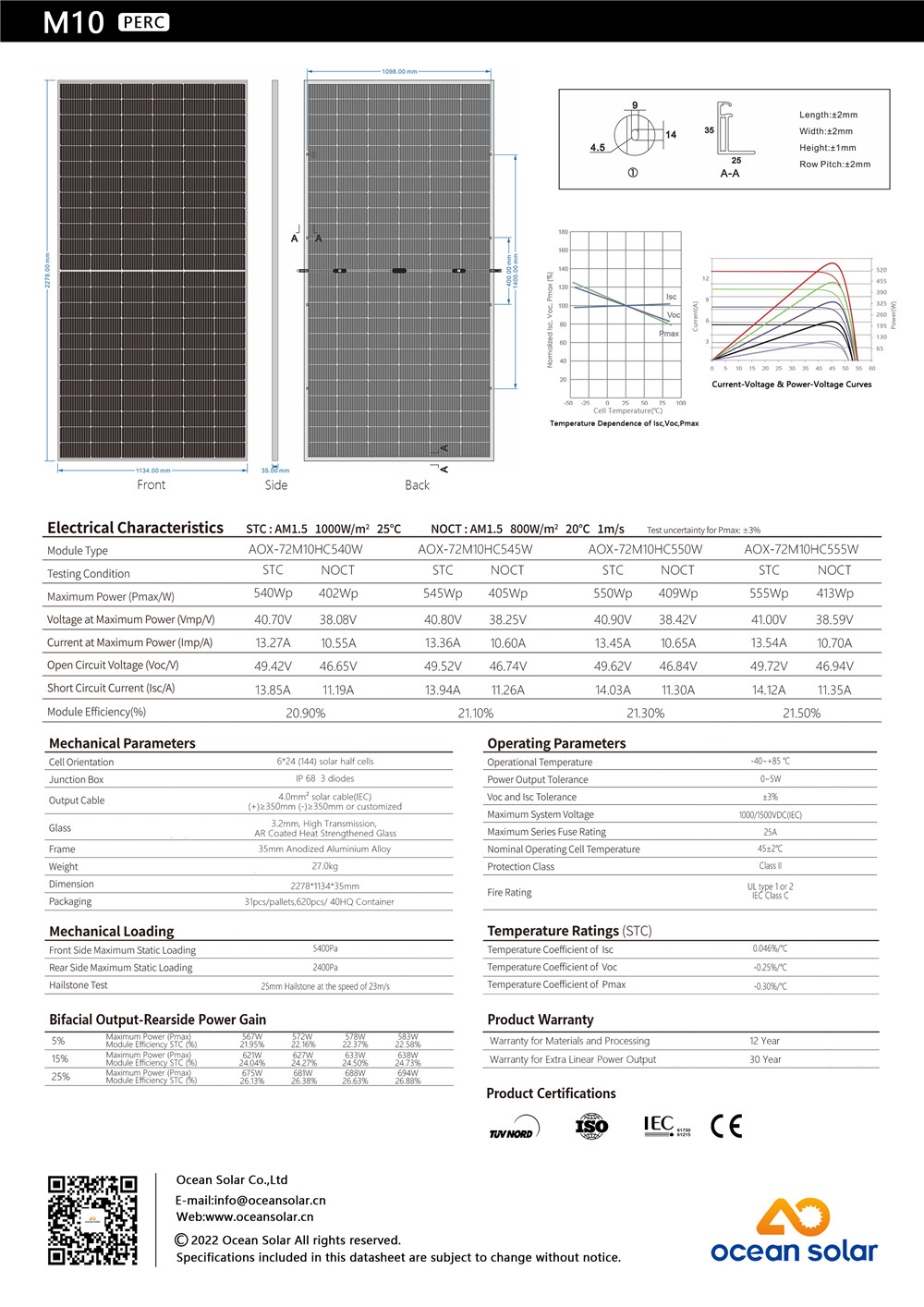

72M10-555W (2)

Product Detail

M10 MBB PERC 144 Half Cell 540W-555W Bifacial Solar Module is an advanced solar panel designed to provide high output and energy generation efficiency. Featuring 144 half-cells, the solar panel uses MBB (Multiple Bus Bar) and PERC (Passivated Emitter Rear Contact) technologies, which make it a more sustainable and efficient option than conventional solar panels.

One of the main advantages of the M10 MBB PERC 144 half-cut 540W-555W bifacial solar module is its high power output capability. With an output ranging from 540W to 555W, this solar panel can provide a lot of energy, making it ideal for properties with high energy needs. The high power output also means that fewer solar panels are needed to produce the same amount of energy, reducing installation costs and the space they take up.

The bifacial technology used in this solar panel is another key advantage. Unlike conventional solar panels, which only harvest energy from the front, bifacial solar panels absorb energy from both the front and the back, significantly increasing energy output. When installed correctly, solar panels can use the reflected light from the ground and other surfaces to generate additional energy, making them an efficient option.

The solar panel also uses PERC technology, which helps to maximize energy absorption and conversion. With a PERC design, solar panels can capture more sunlight and convert it into electricity, increasing overall yield. The MBB technology used in this solar panel also minimizes losses associated with high electrical resistance, thereby increasing power output.

In addition to high performance, the M10 MBB PERC 144 half-cell 540W-555W bifacial solar module is also designed to withstand harsh weather conditions. The use of advanced materials such as tempered glass and O-silicon ensures that the solar panels can withstand damage from weather, environmental elements, and mechanical stress, making them a durable choice.

In addition, the M10 MBB PERC 144 half-cell 540W-555W bifacial solar module is easy to install thanks to its lightweight design and easy-to-handle structure. It comes in a sleek black frame, making it a stylish addition to any property. When installed correctly, this type of solar panel can help reduce your electricity bills, providing an excellent return on investment over time.

Finally, this solar panel is an eco-friendly option that helps reduce your carbon footprint while saving significant energy. By using this solar panel to generate renewable energy, homeowners and commercial users can significantly reduce their dependence on the grid and contribute to a cleaner environment.

In summary, M10 MBB PERC 144 Half Cell 540W-555W Bifacial Solar Module is an advanced solar panel that provides high energy output, efficiency and durability. With its bifacial, PERC and MBB technology, and durable construction, it is an excellent choice for those looking to generate sustainable energy and reduce their carbon footprint.
